Product Size

Packing Size

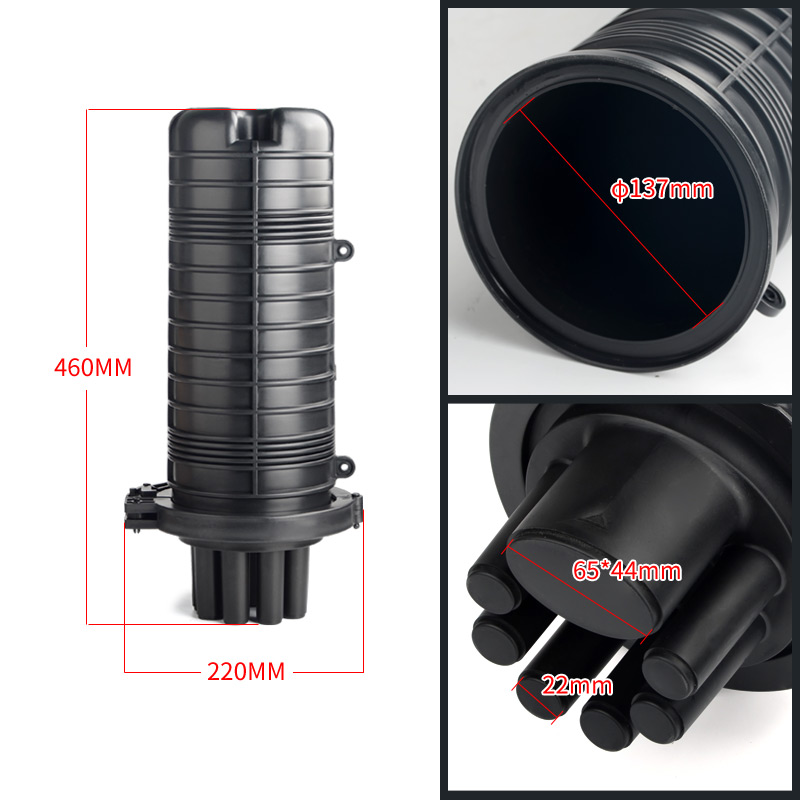

460*φ170mm

480*230*200 mm

1 inlet port  65*44mm

 6 out port  φ22mm

6 pcs / carton

68* 49*58cm 24kg

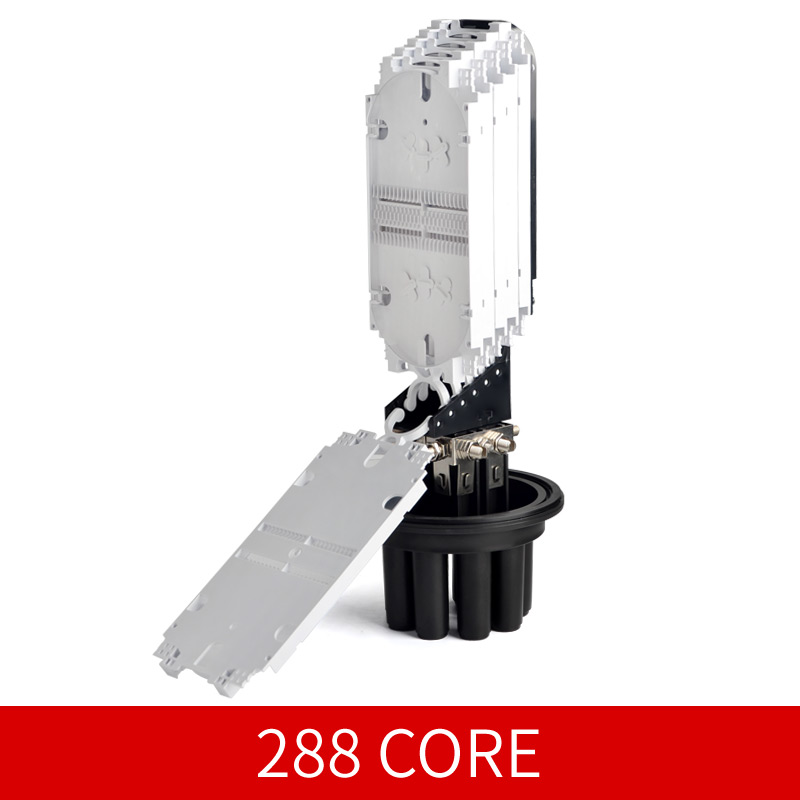

48F/tray, max capacity 288(6 trays)

1.Suitable for ordinary fiber and ribbon fiber.

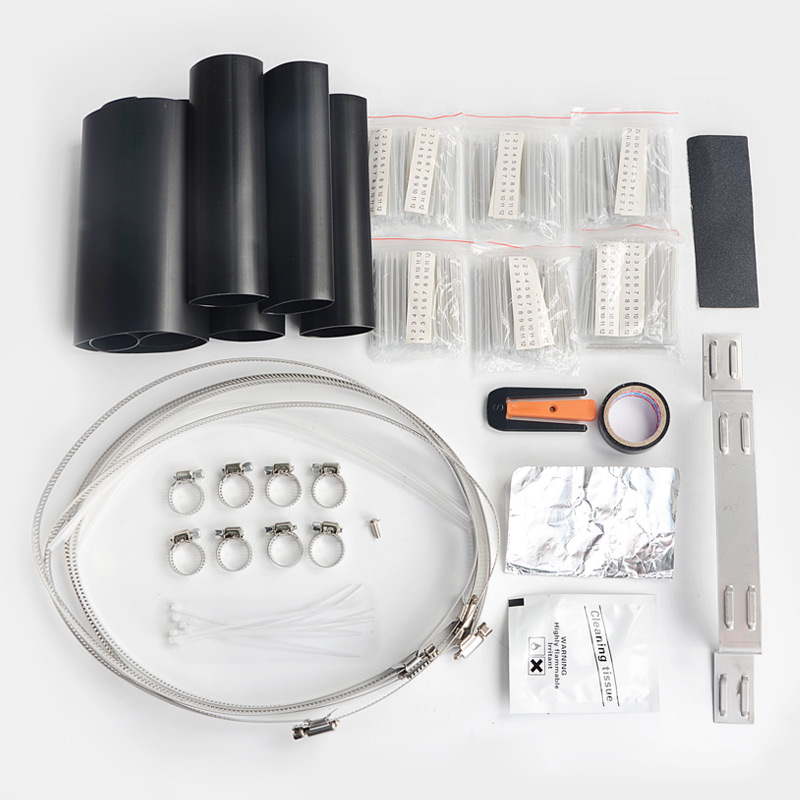

2.Fully kitted with all parts for convenient operation.

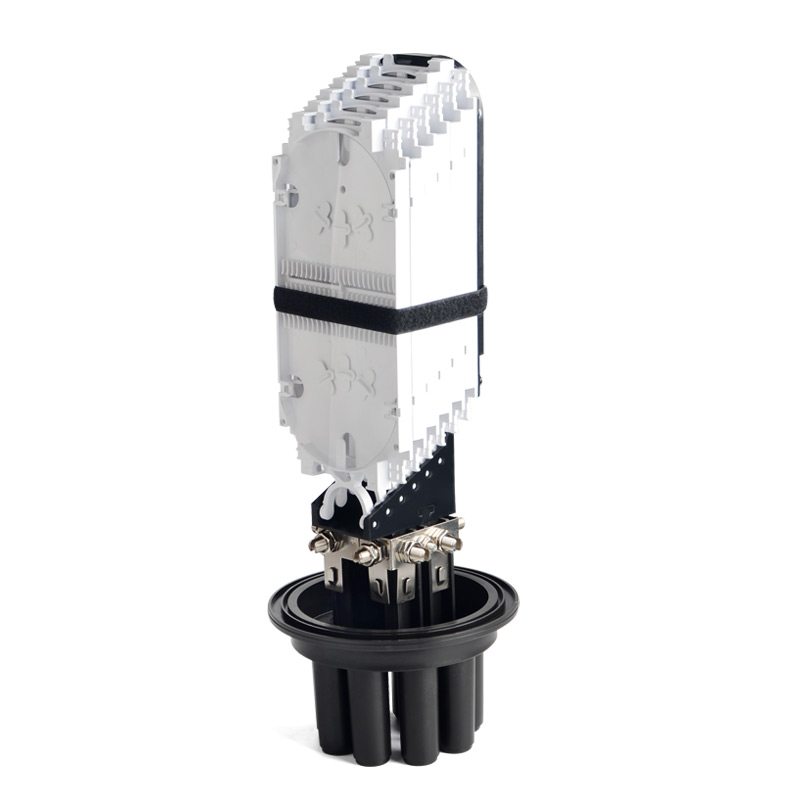

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
