Product Size

Inner Box Size

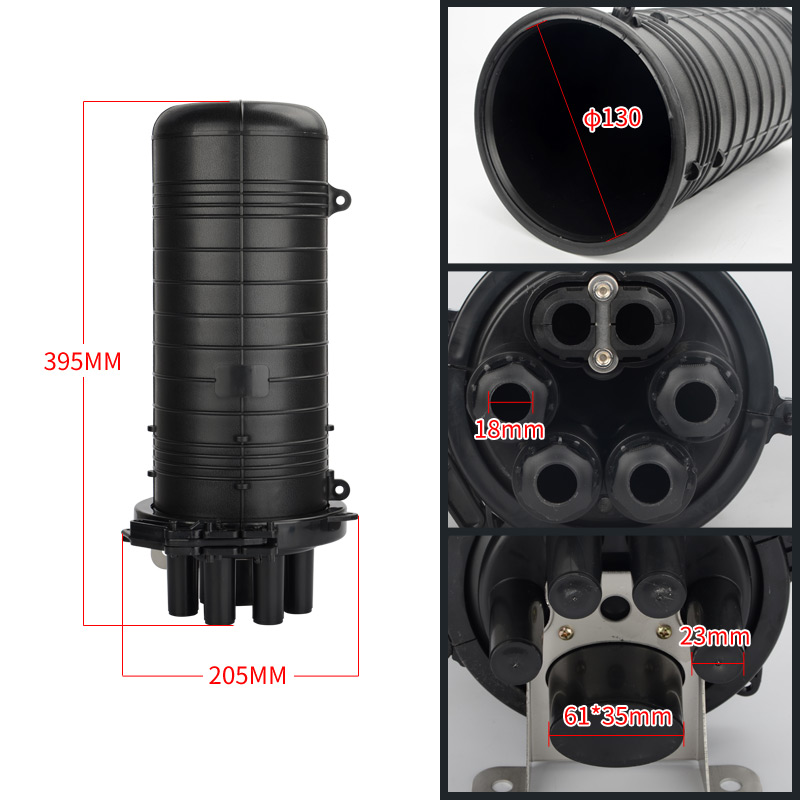

395*205*175mm

φ130 mm

400*210*190 mm

1 inlet port 61*35mm

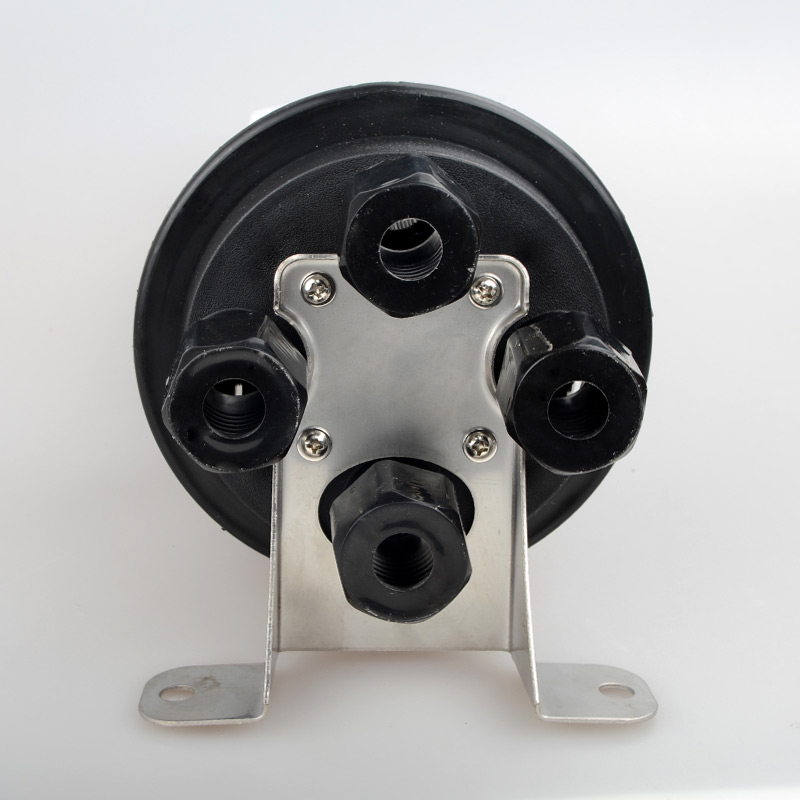

 4 out port φ23mm

8 pcs / carton

70*40*43cm 18.2kg

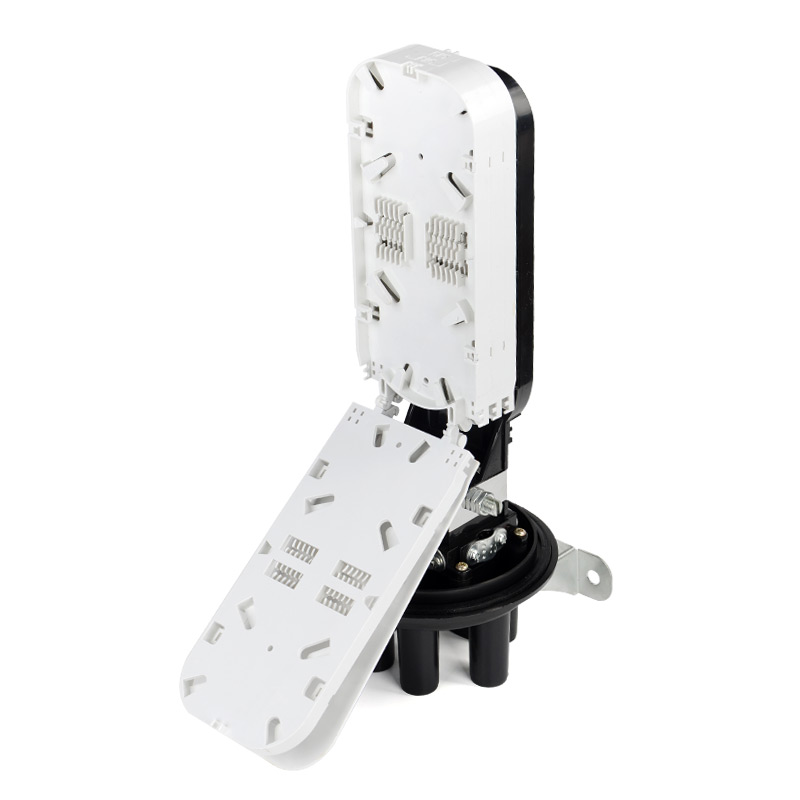

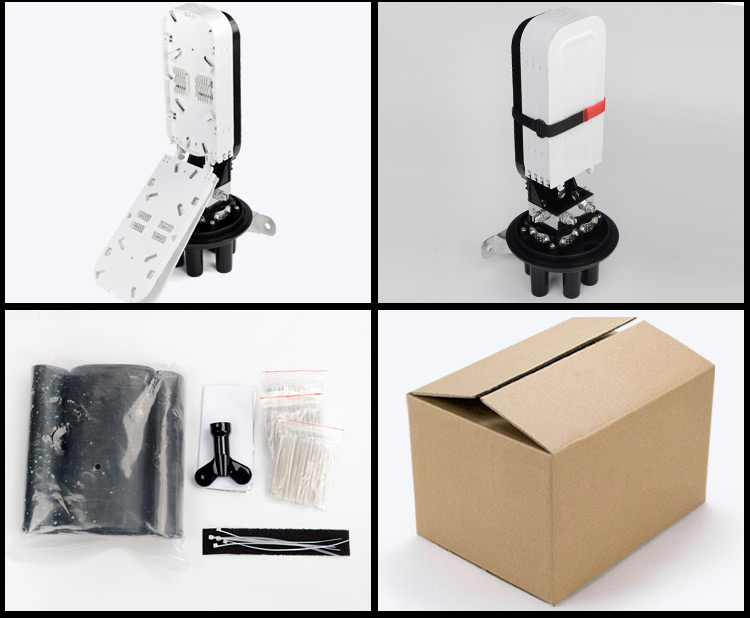

24F/tray, max capacity 96F(4 trays)

1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.

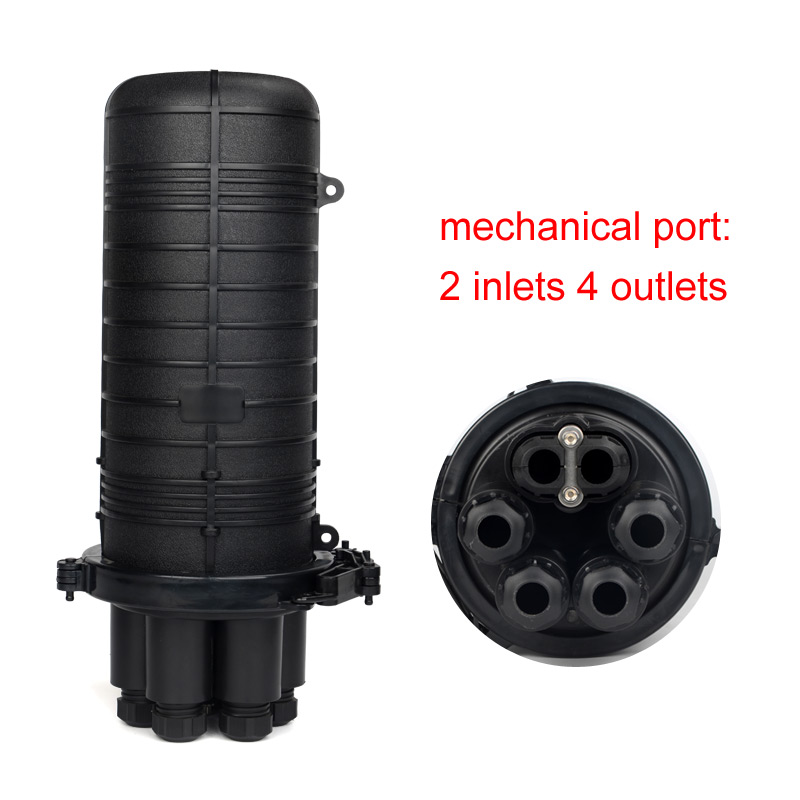

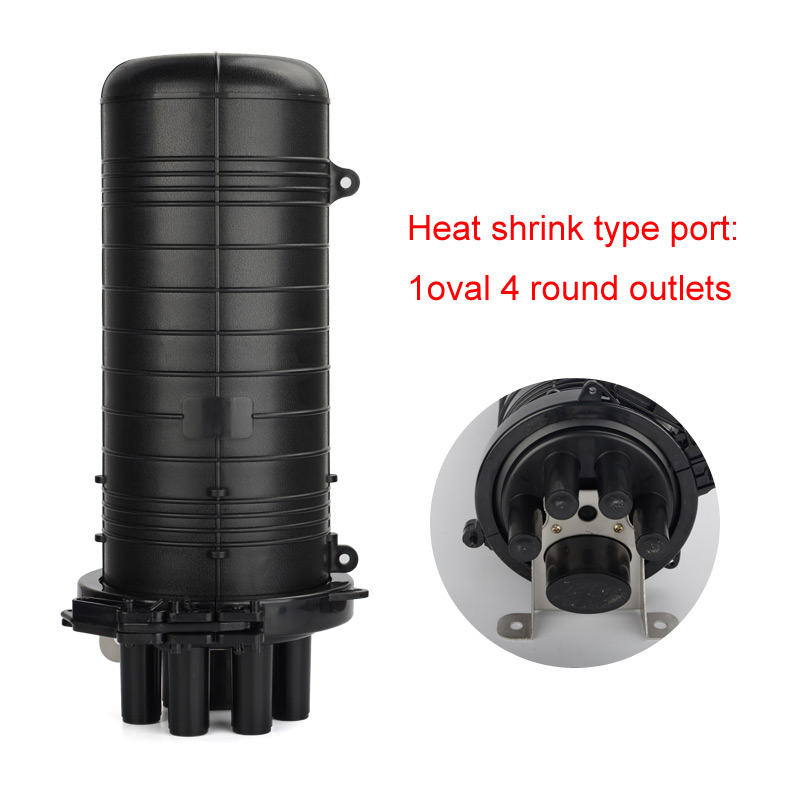

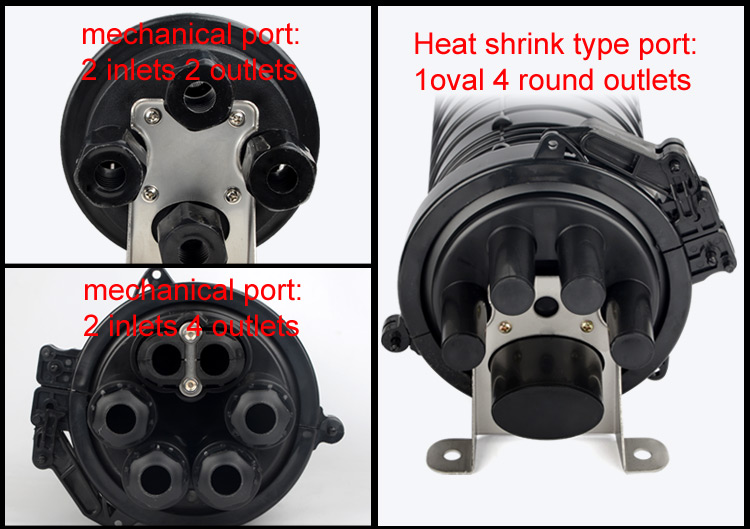

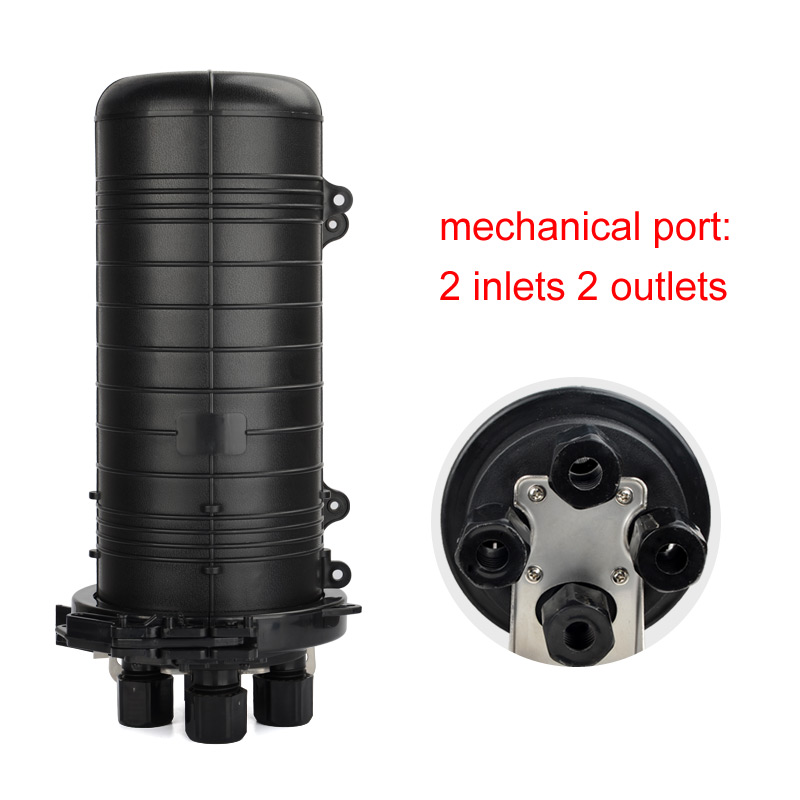

8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
