Products Home > Products

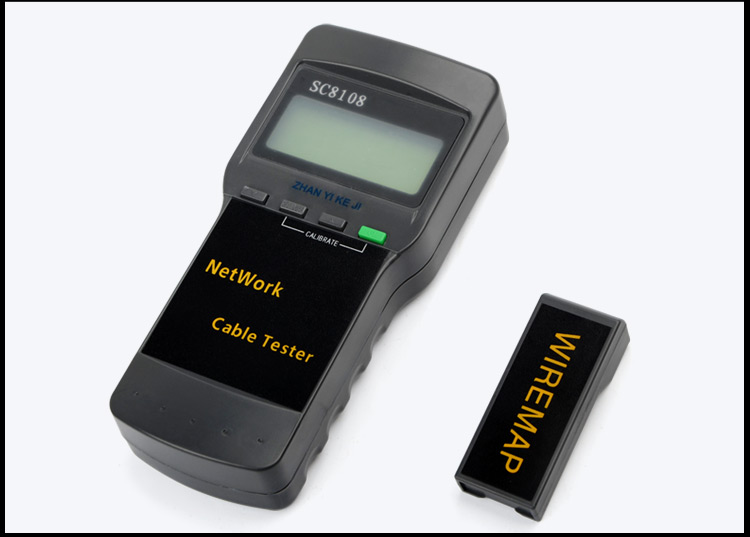

Network Tester Meter SC8108

The main function characteristics:

The connectivity test can be carried out, single cable

And can detect 5E, 6E Internet Network  cable and telephone line wiring fault, open circuit,short circuit, including: cross connection, reverse connection and series wound

Localization and connection / connection error.(But not for shielded cables,STP cable cannot work)

And measuring cable length, and location of the specific location of open circuitshort circuit

And the length of the cable dynamic calibration function, make the lengthmeasuring accuracy is as high as 97%

- easy to use, large screen display the test results stick out a mile

And easy to carry, long battery life (50 hours of standby time)

Automatic delay shutdown

And there are no length measurement and matched pairs were inserted on distalrecognizer can

And cable location, 8 distal passive testing socket (identification number ID1-ID8)

And the distal identification appliance audio prompt function

And self checking function, can automatically compensate the variation of the battery power, the influence of environmental temperature change

And MCU software watchdog design, reliable operation

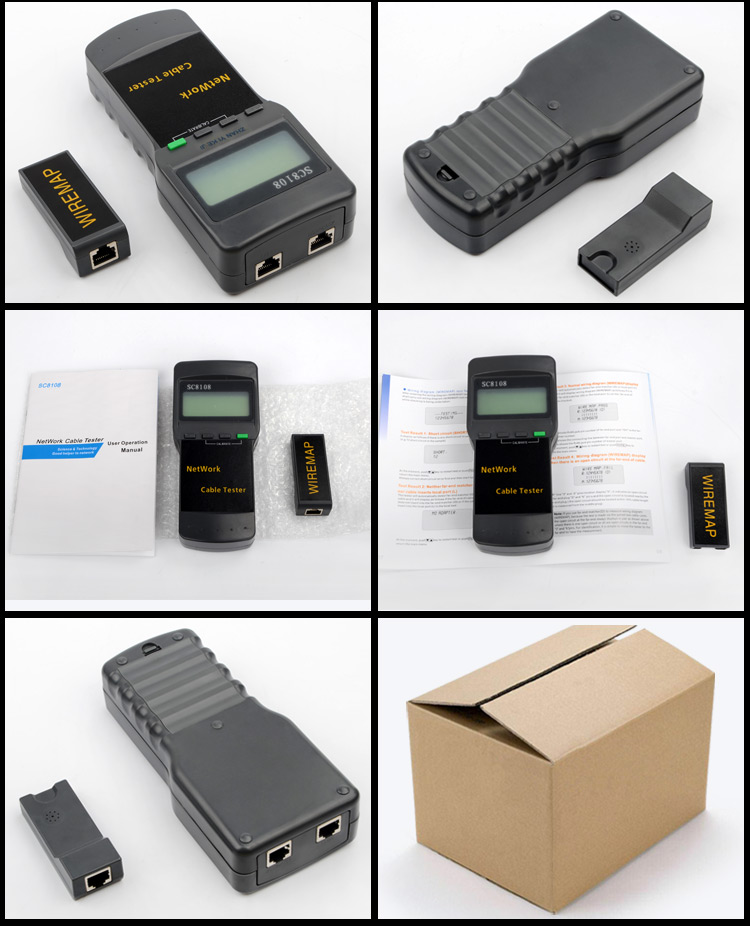

 Package Inluded:

1 x Multi-Network Cable Tester
1 x Far-End Test Jack
1 x Instruction Manual
