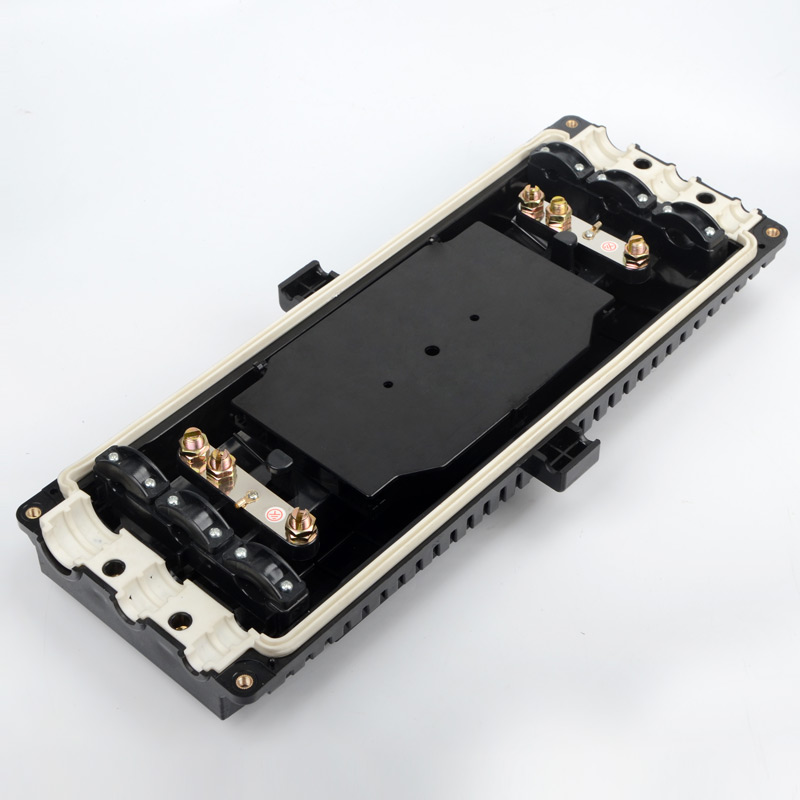

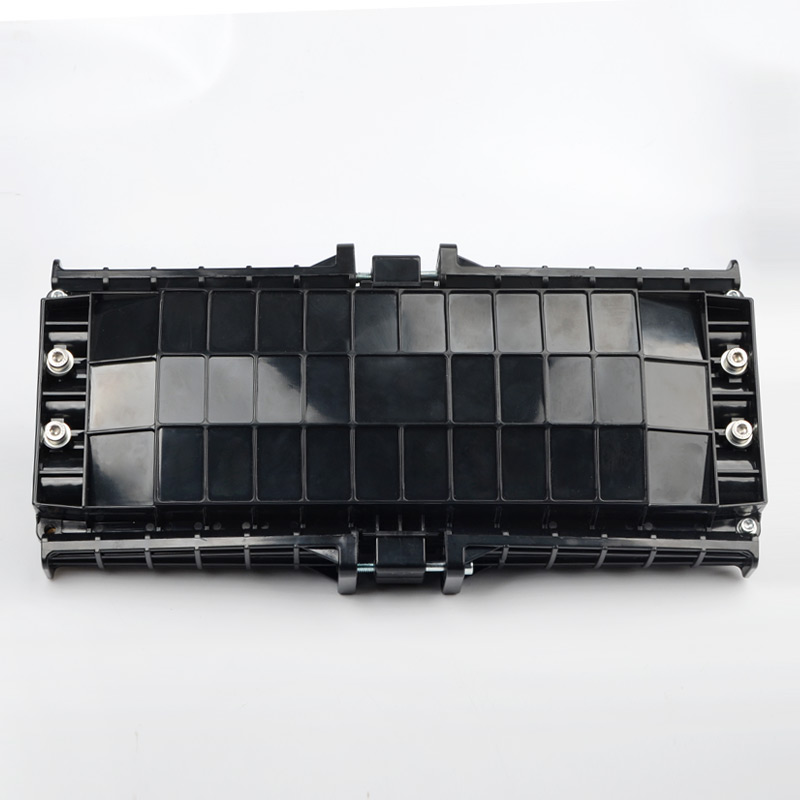

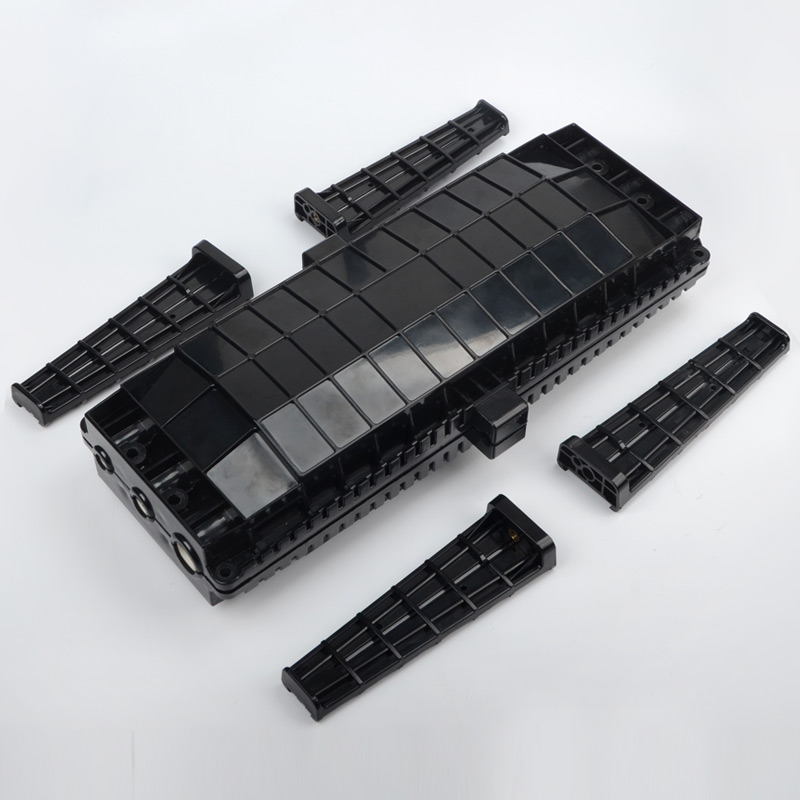

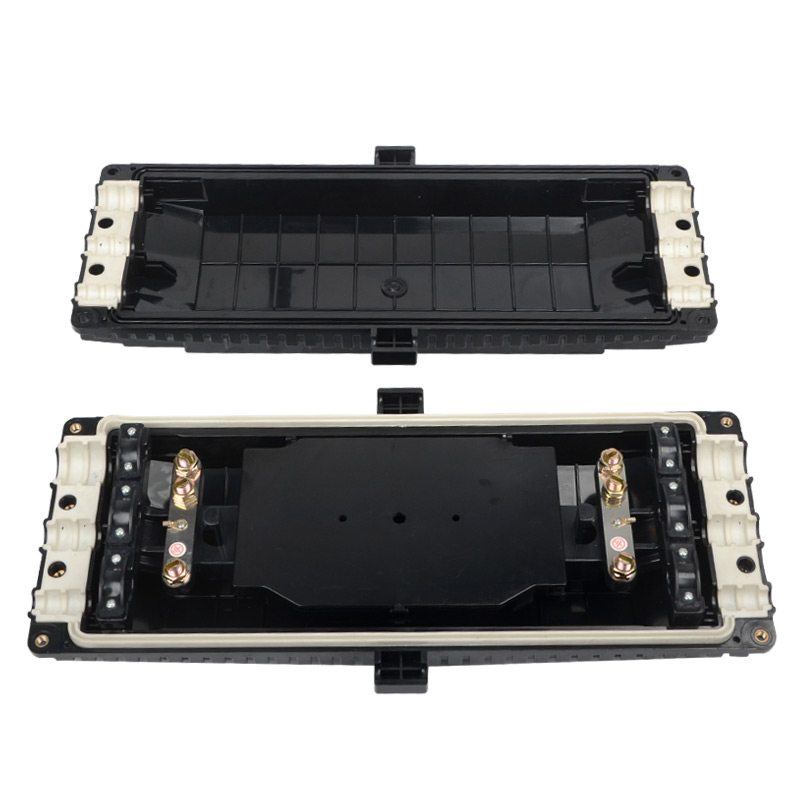

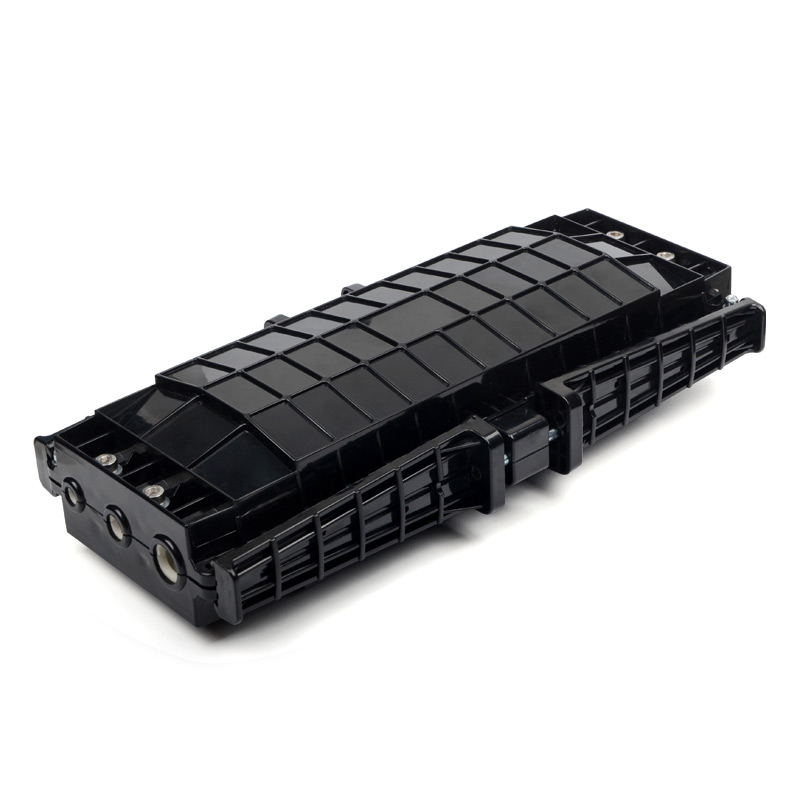

FCBD-96B

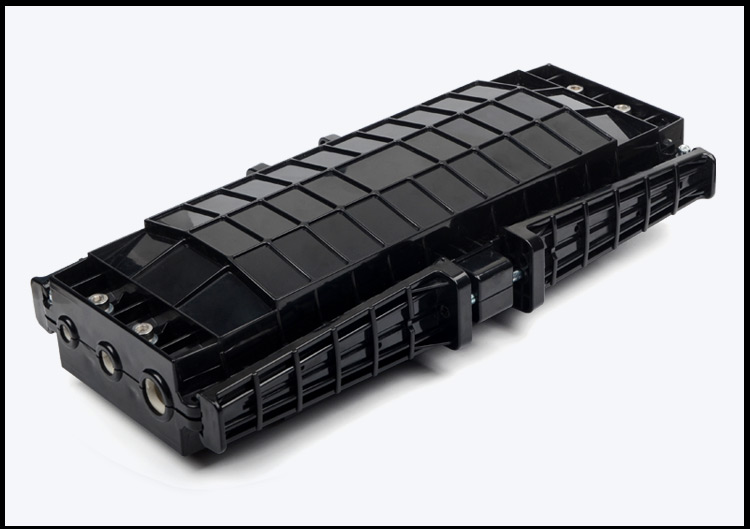

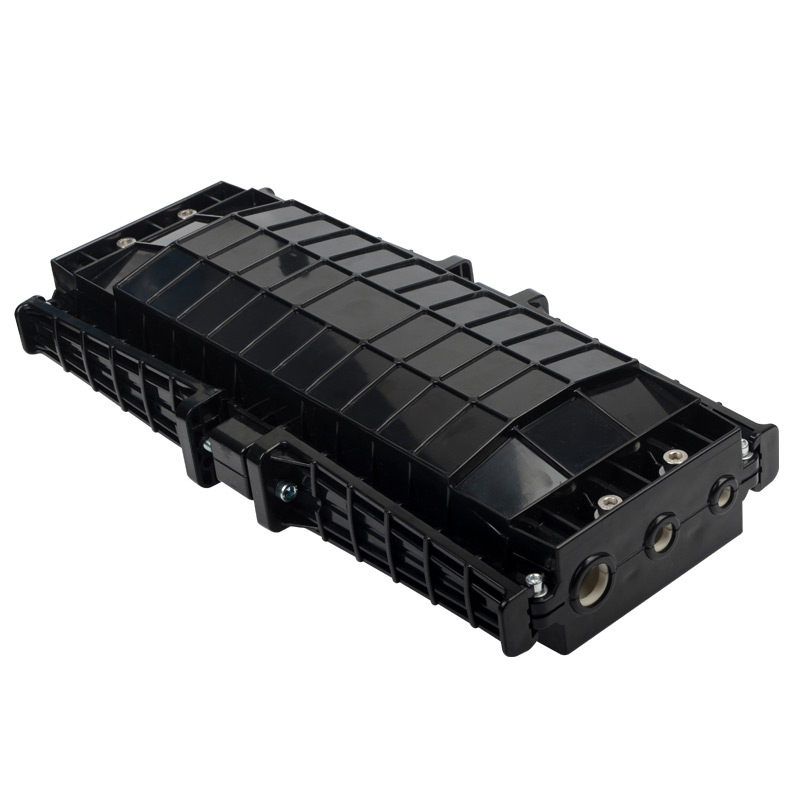

Product nameFiber Optic Joint ClosureIP RateIP68
Product ModelFCBD-96B

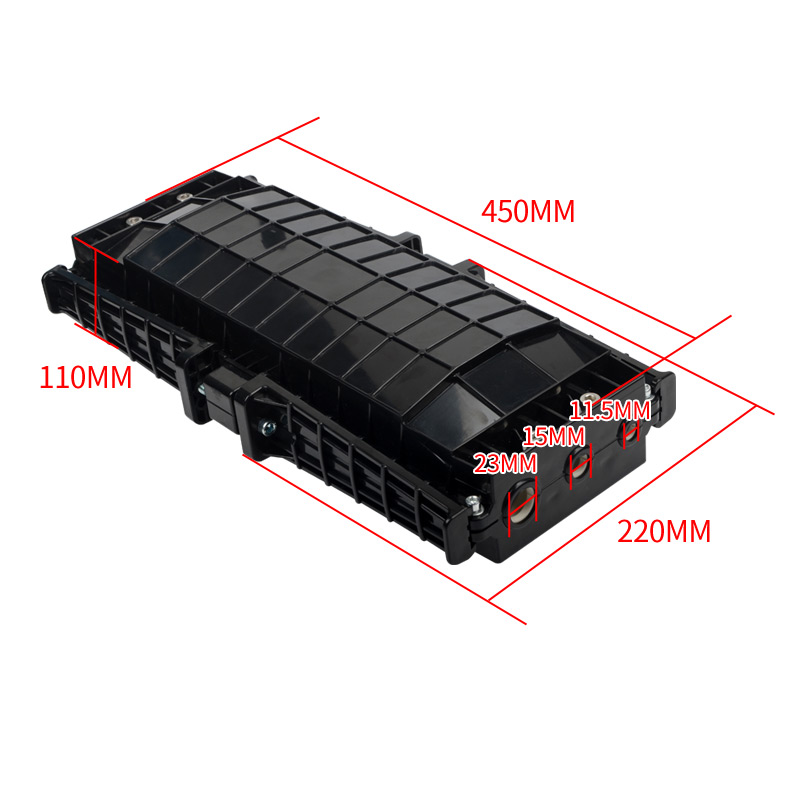

Product size

Packing Size

450*220*110 mm

480*240*115 mm

Ports

3 inlet port /3 out port

φ23/15/11.5 mm

Packing Quantity

6 pcs / carton

50*47*36mm 18.5kg

Max Core

24F/tray, max capacity 96F(4 trays)

MaterialABS
Installation TypeHorizontalG. weight2.7kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.

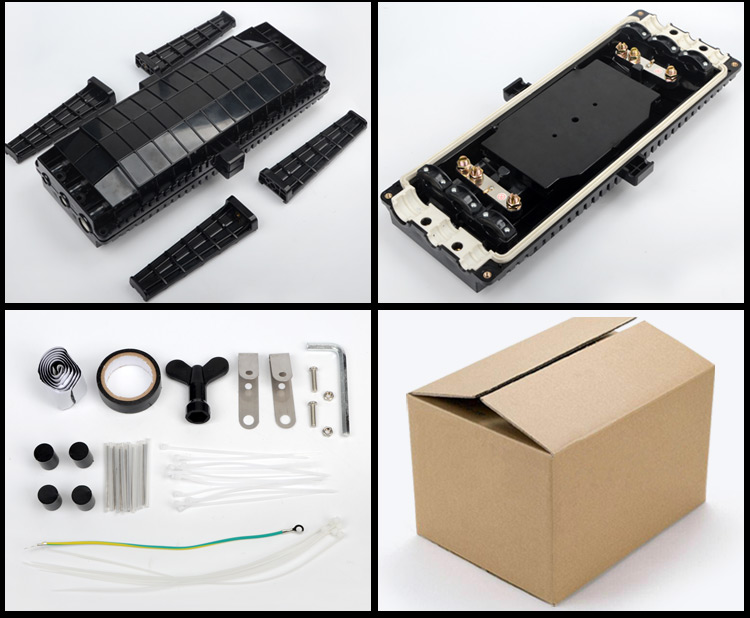

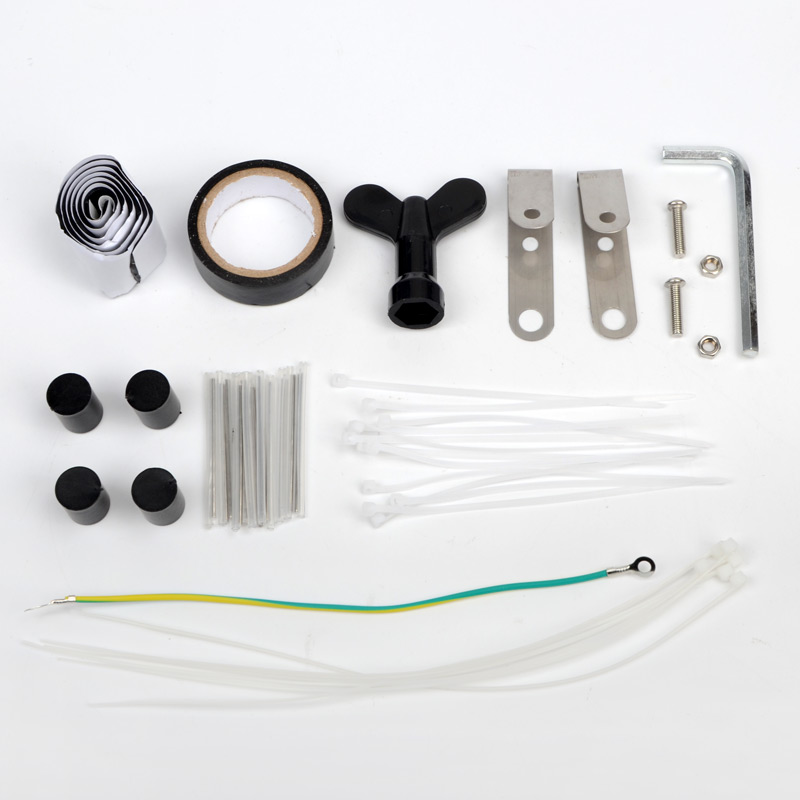

2.Fully kitted with all parts for convenient operation.

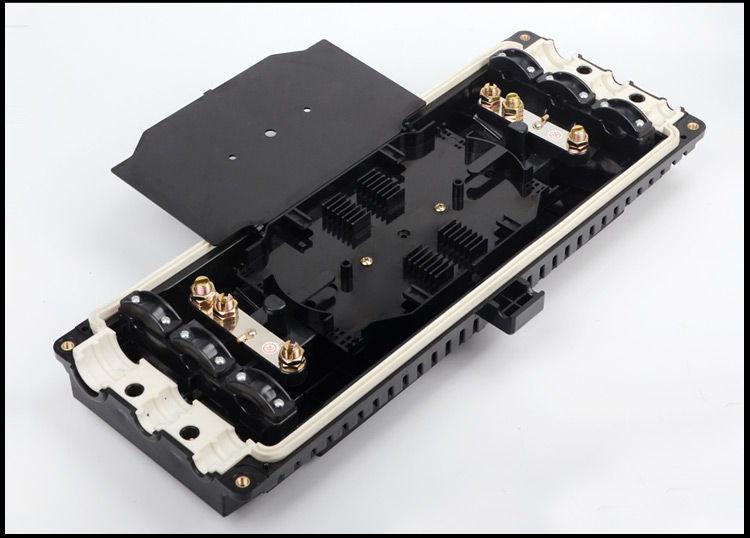

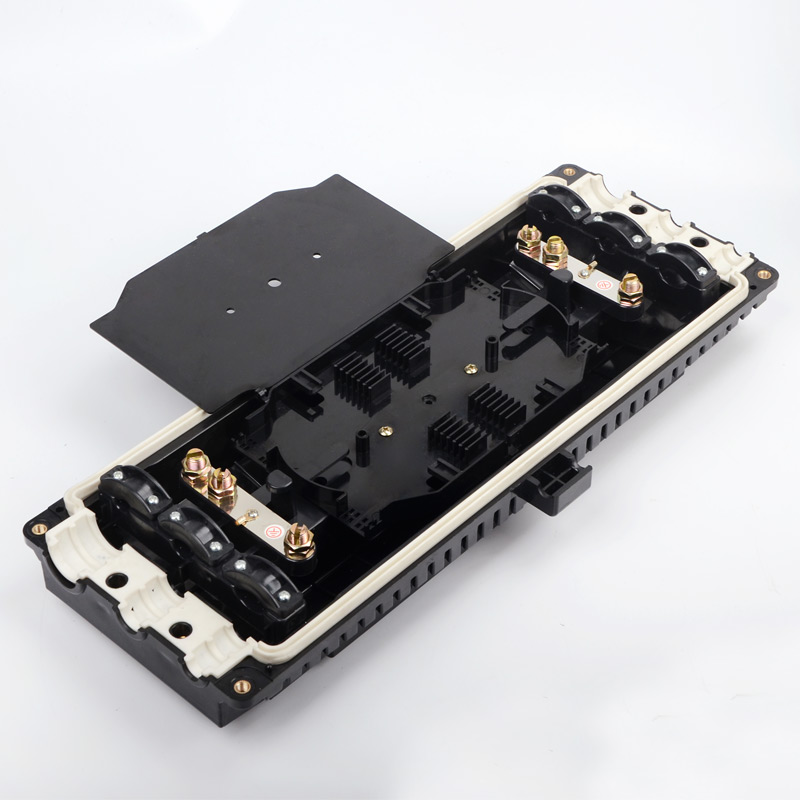

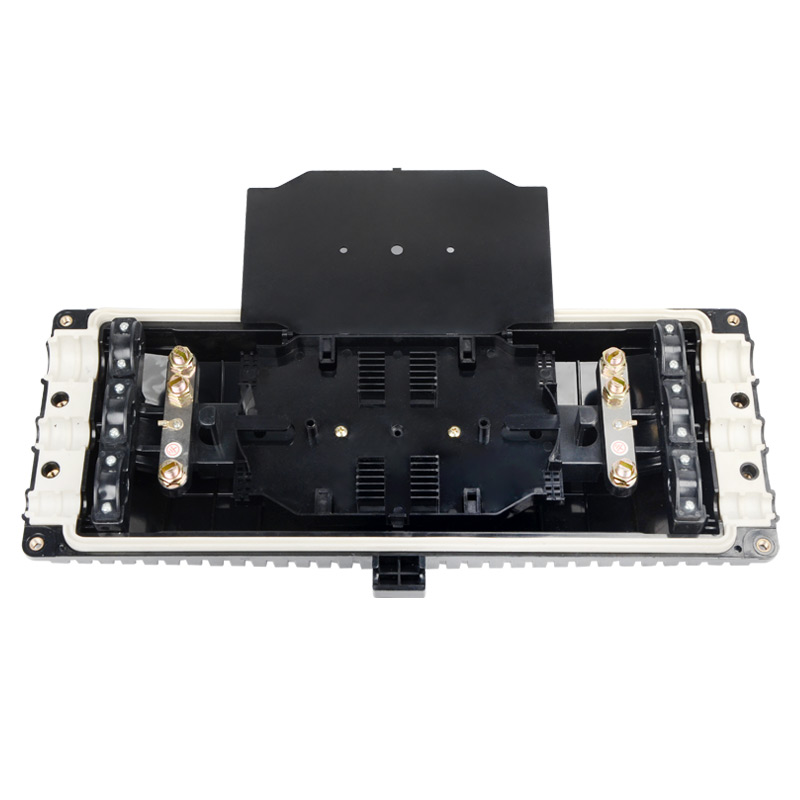

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
