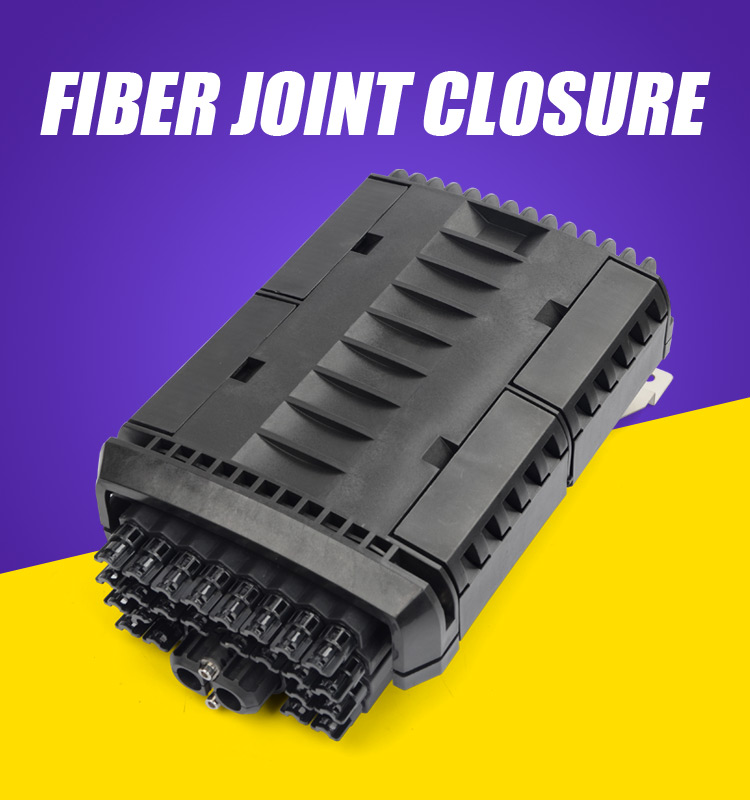

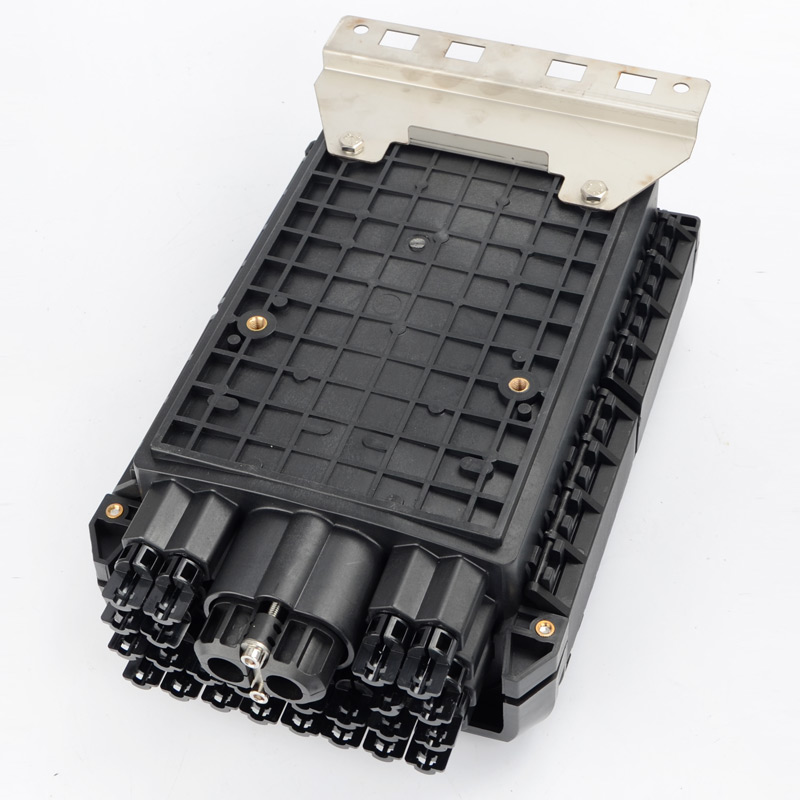

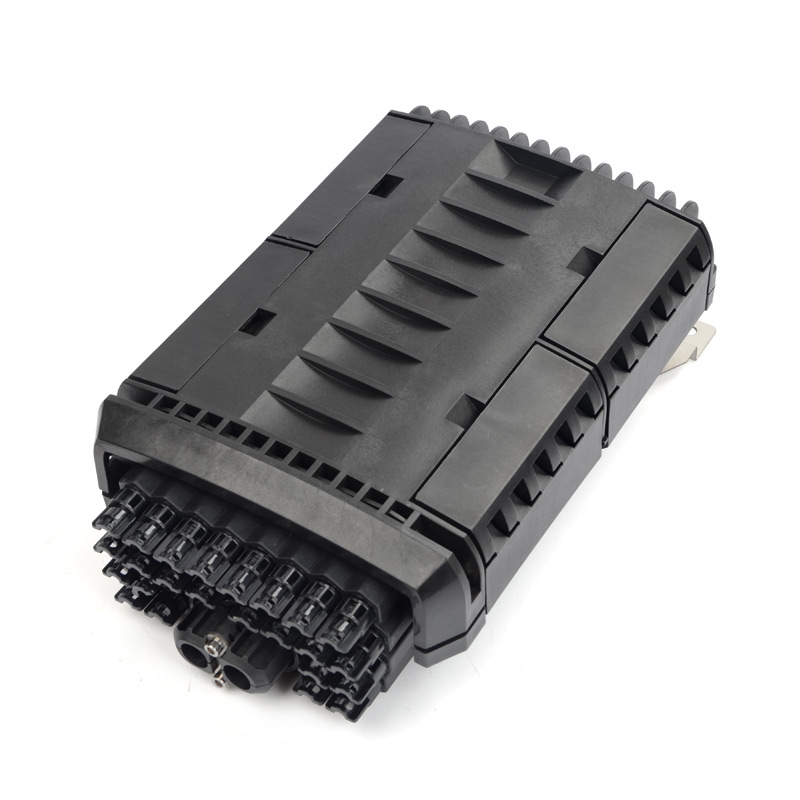

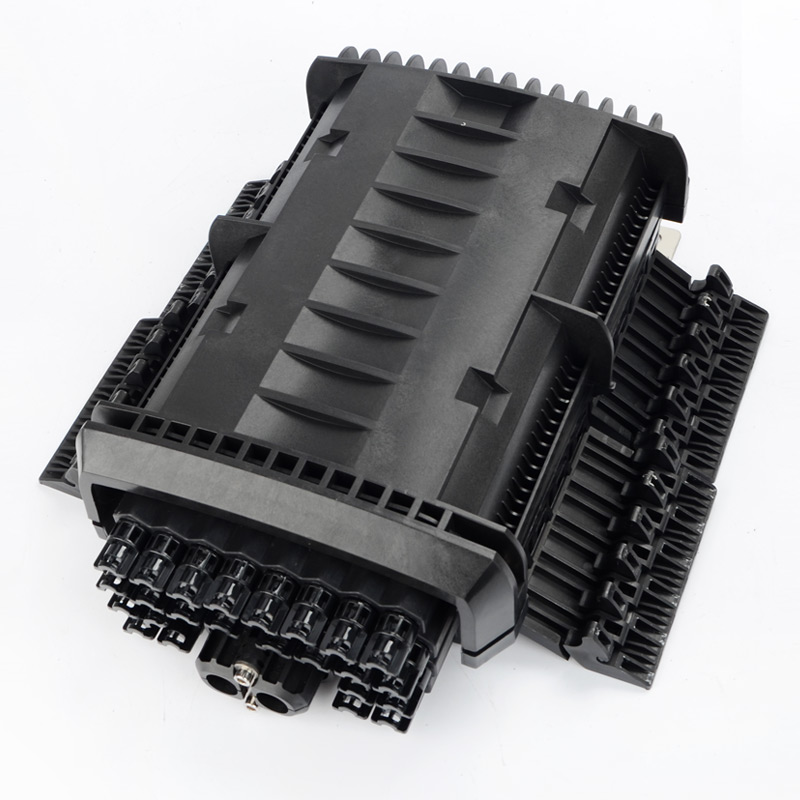

FMDB-24 Fiber Optic Multifunction Distribution Box

Product name

Fiber Optic Multifunction
 Distribution Box

IP RateIP65

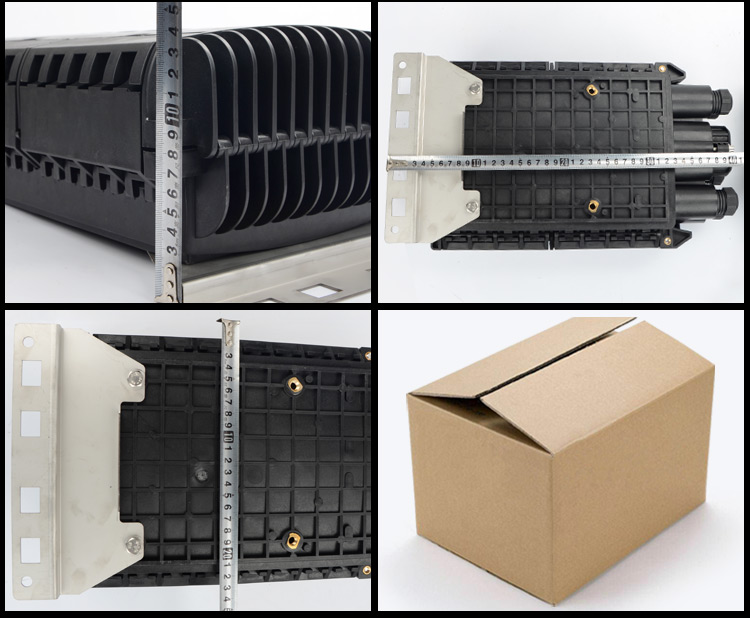

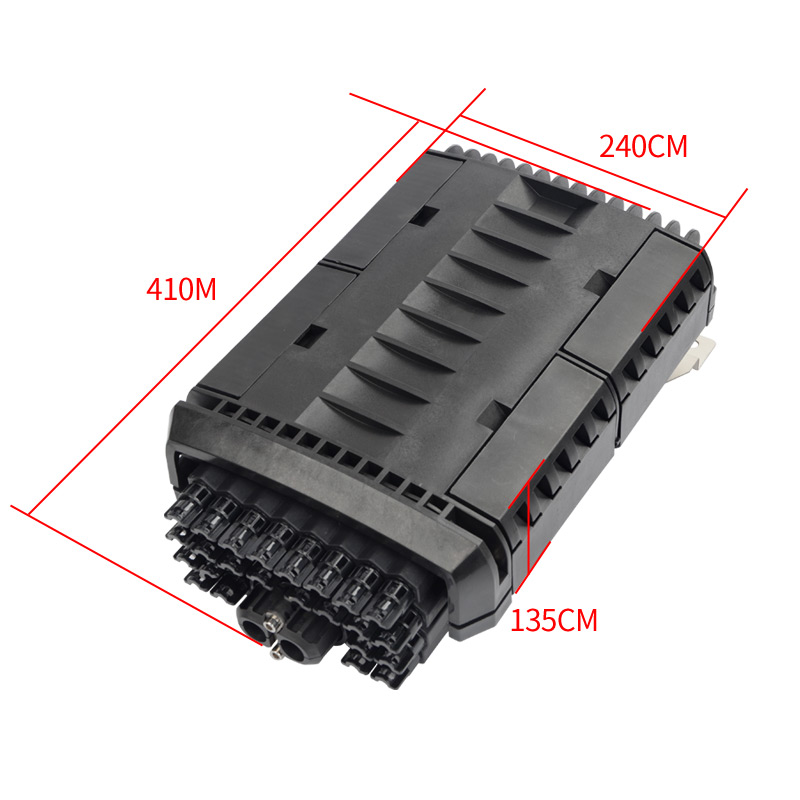

Product ModelFMDB-24Packing Size410*240*135 mm

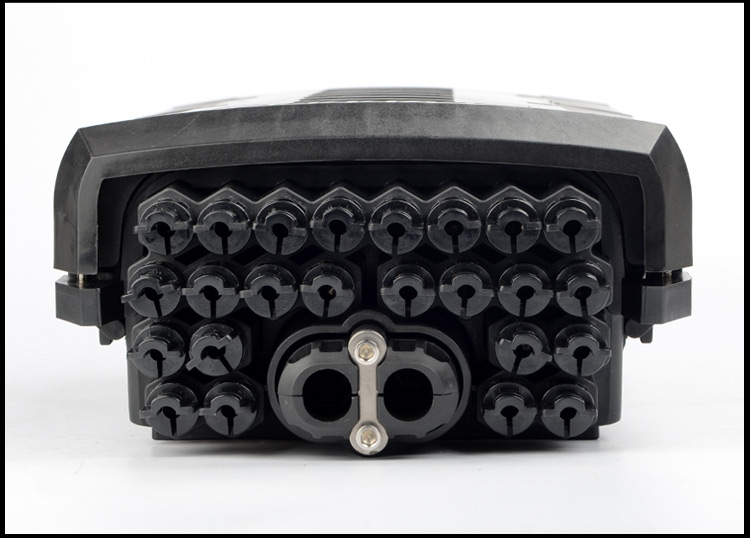

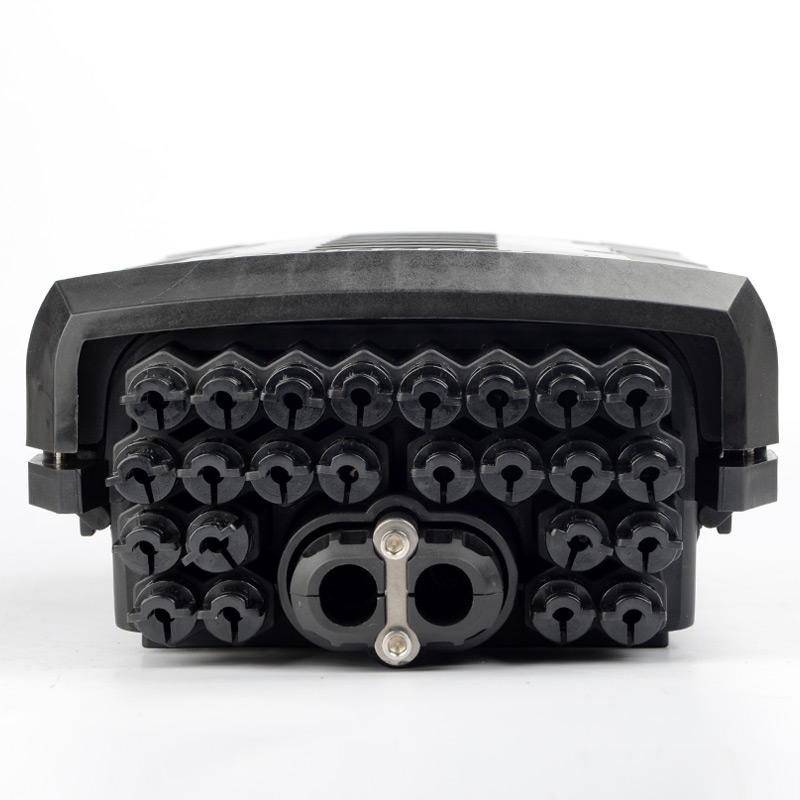

Ports

2 inlet port 18mm

24 out port 15mm

Packing Quantity

4 pcs / carton

52*42*35cm 18.5kg

Max Core

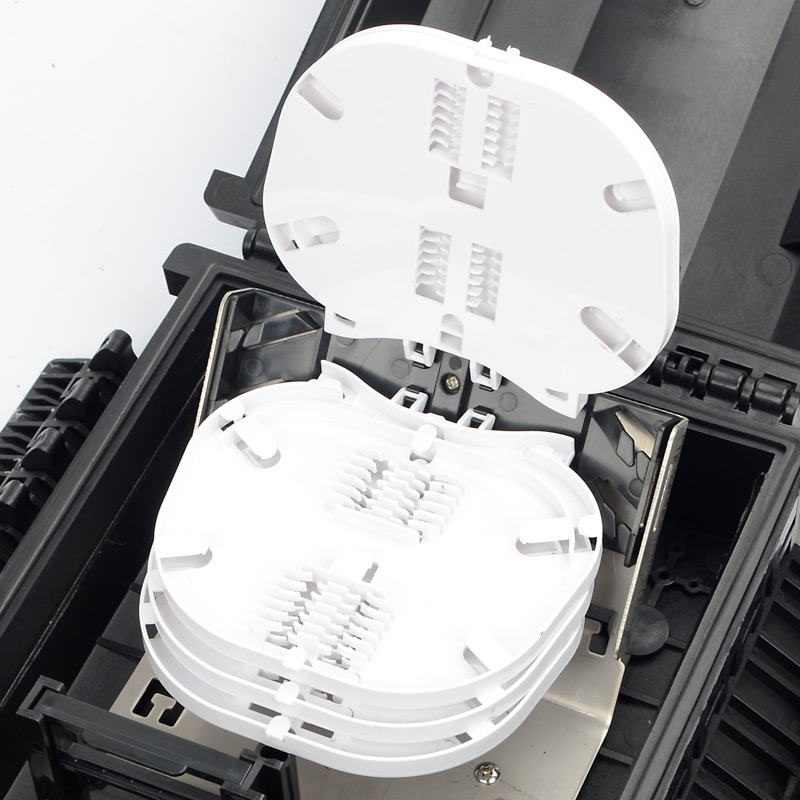

24F/tray, max capacity 96F(4 trays)

MaterialStrengthen Polymer Plastic
Installation TypeHorizontalG. weight4.5kg
Key Features:1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.

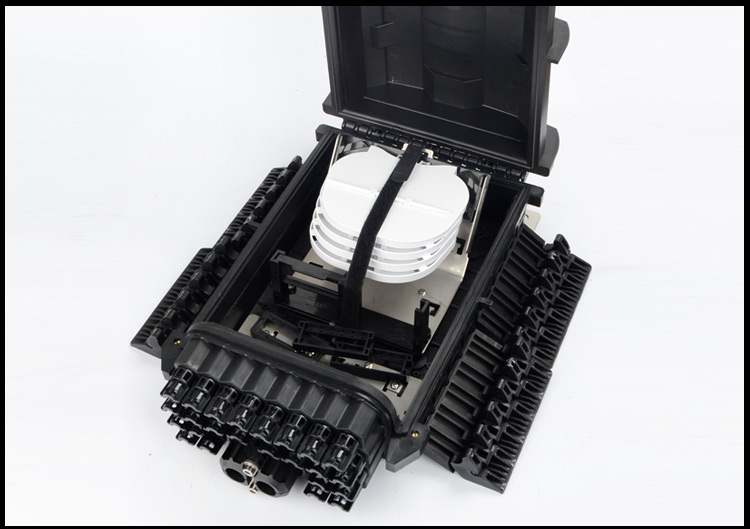

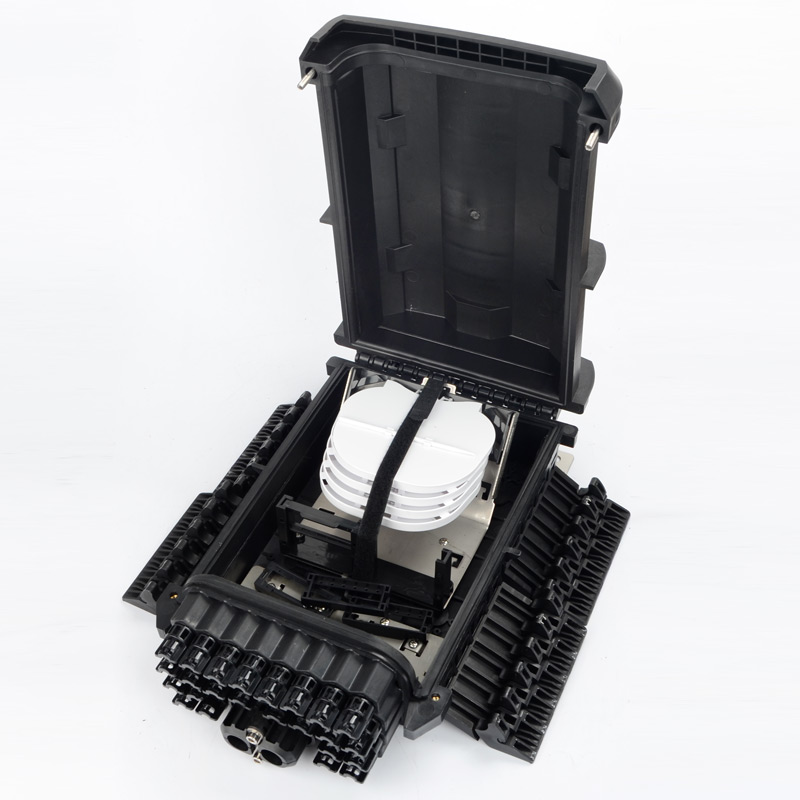

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
