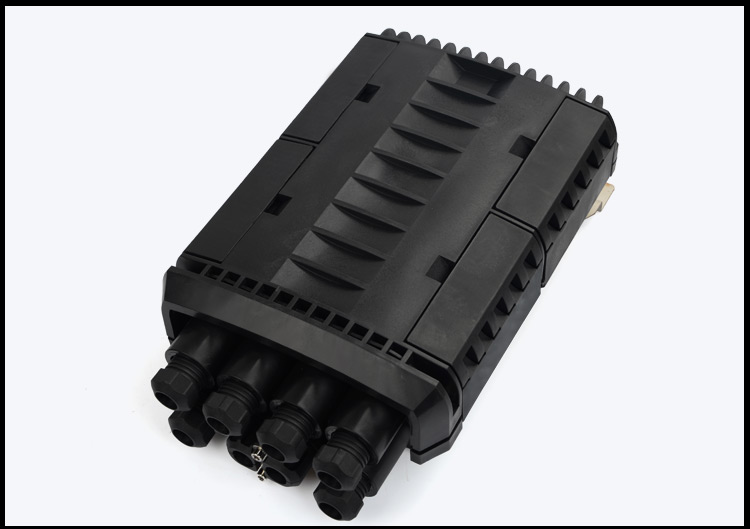

FMDB-4-4 Fiber Optic Multifunction Distribution Box

Product name

Fiber Optic Multifunction
 Distribution Box

IP RateIP65
Product ModelFMDB-4-4Packing Size410*240*135 mm

4 inlet port 18mm

4 out port 18mm

Packing Quantity

4 pcs / carton

52*42*33cm 18.5kg

Max Core

24F/tray, max capacity 288F  (12trays)

MaterialStrengthen Polymer Plastic
Installation TypeHorizontalG. weight4.5kg
Key Features:            1.Suitable for ordinary fiber and ribbon fiber.

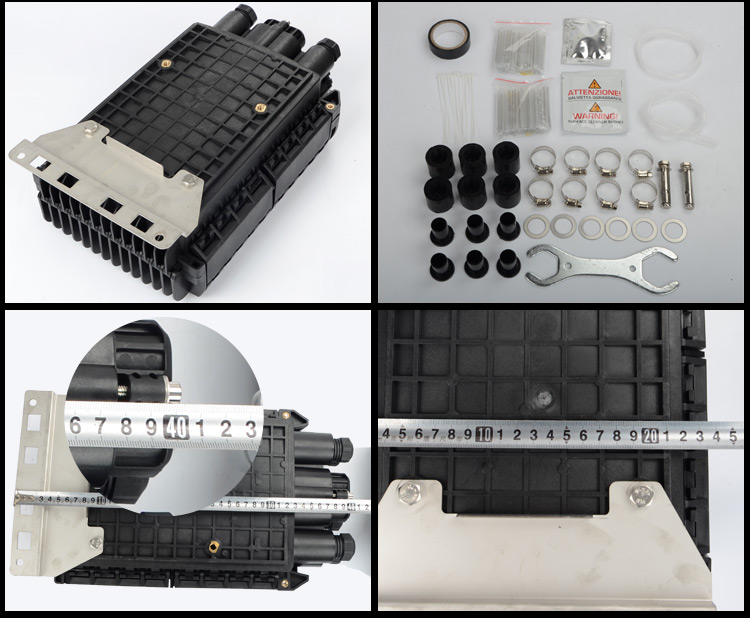

2.Fully kitted with all parts for convenient operation.

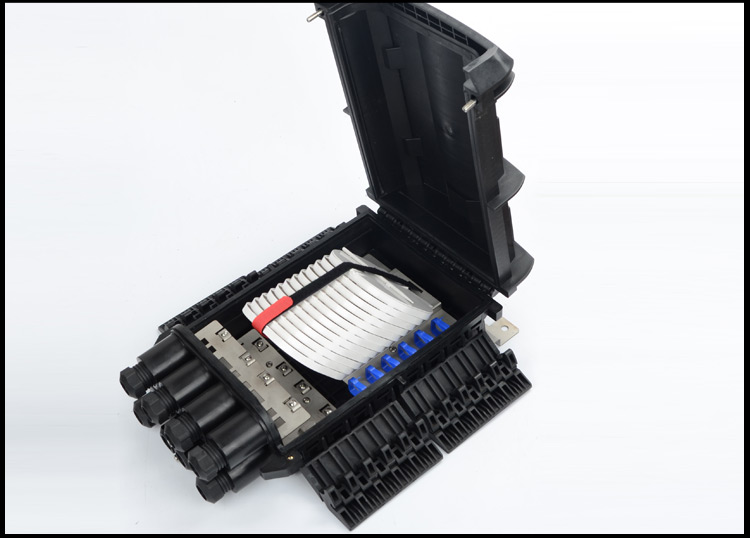

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
