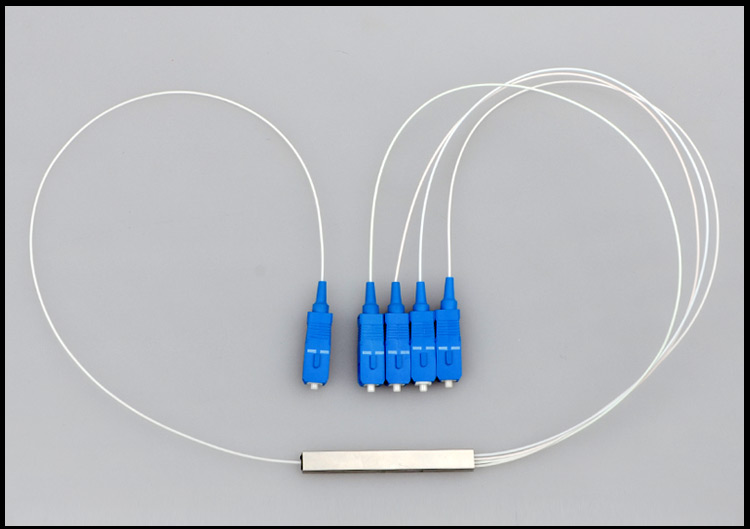

PLC SC/UPC 1:4

Product name	PLC Optic Splitter	Product Type	Mini steel tube type
Product Model	PLC SC/UPC 1:4	Optical Connector	SC/FC/LC/ST

1 × N PLC Optic Splitter Specification
OperatingWavelength（μm）	1260~1650
Port Configuration	1×2	1×4	1×8	1×16	1×32
Insertion Loss (dB)	3.6	7.5	10.2	13.5	16.9
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5
Polarization Dependent Loss (dB)	0.2	0.2	0.2	0.25	0.3
Wavelength Dependent Loss (dB)	0.3	0.3	0.3	0.5	0.5
Temperature Dependent Loss(-40~85) (dB)	0.4	0.4	0.4	0.5	0.5
Returm Loss (dB)	55/50
Operating Temperature （℃）	-40~+85
Directivity (dB)	≥55
Storage Temperature （℃）	-40~+85
