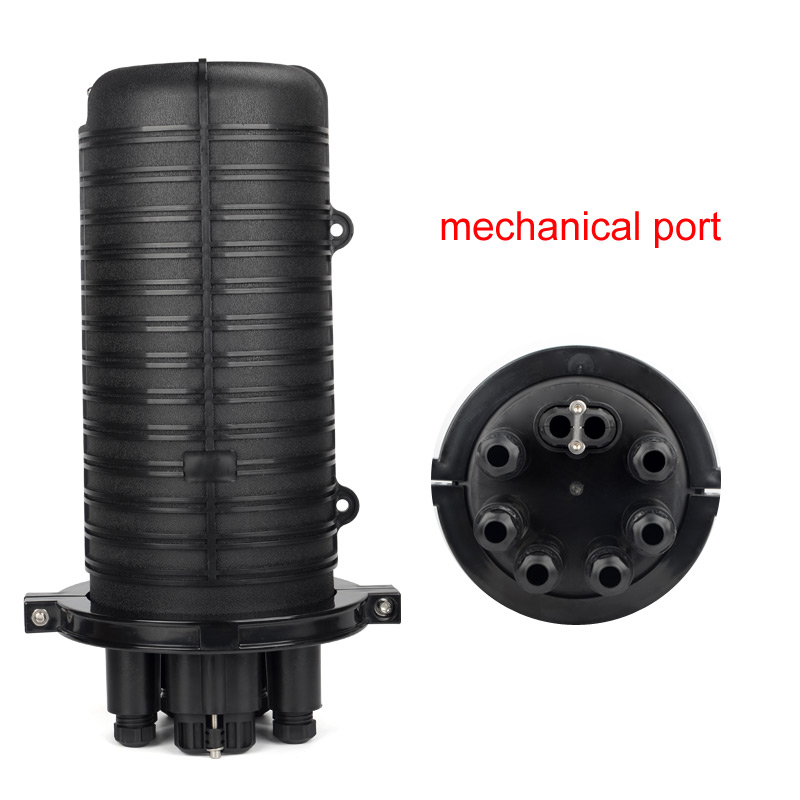

FCBF-288B

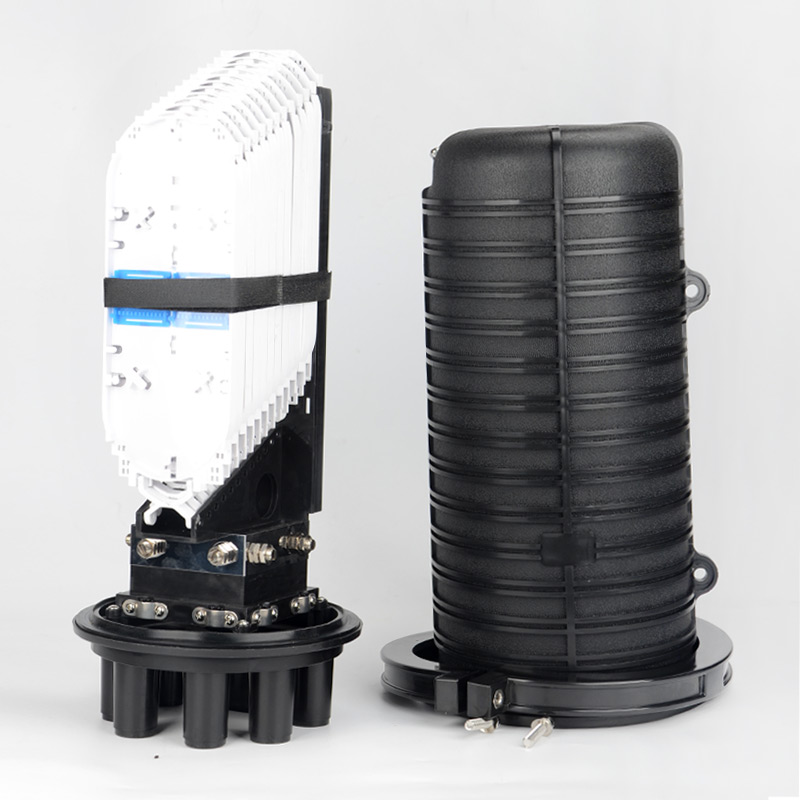

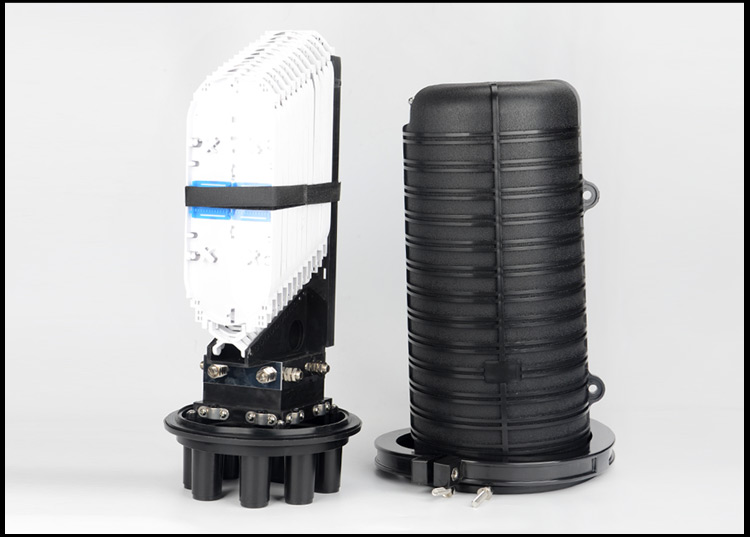

Product nameFiber Optic Joint ClosureIP RateIP68
Product ModelFCBF-288B

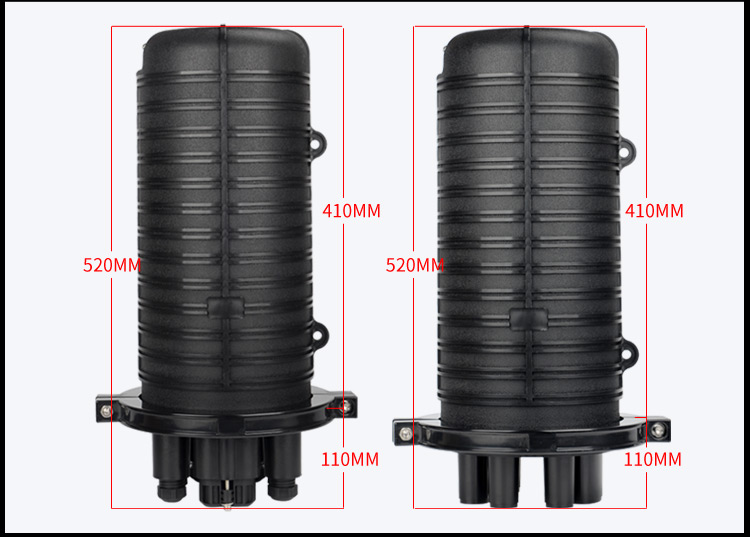

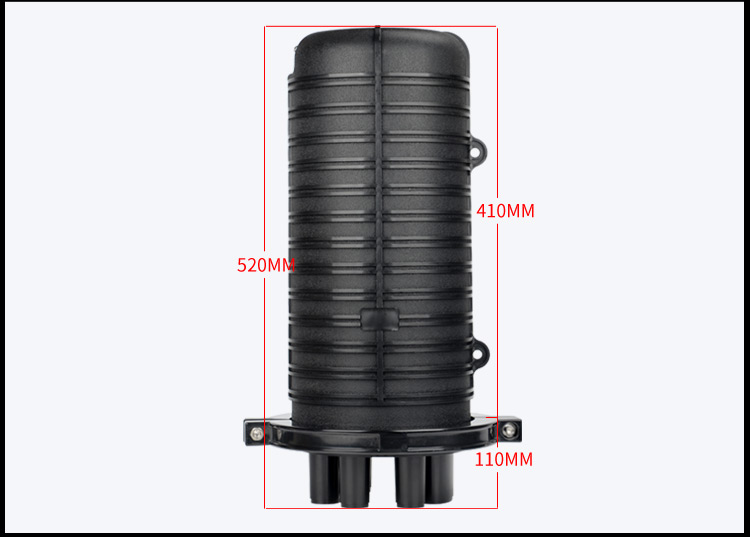

Product Size

Inner Box Size

520*φ230mm

310*320*550 mm

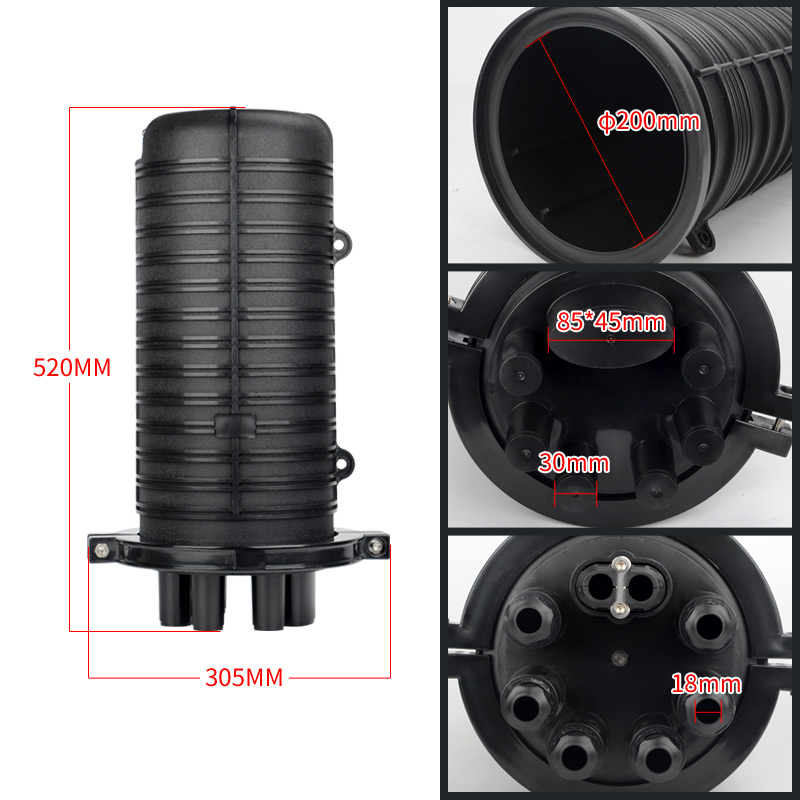

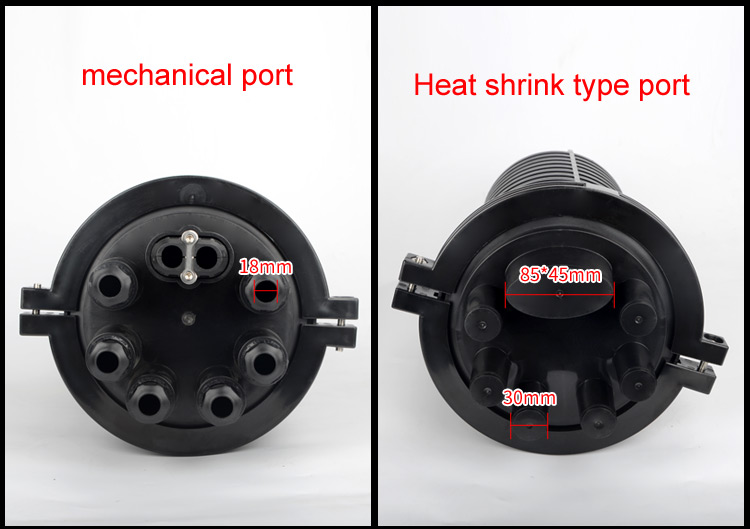

Ports

1 inlet port  85*45mm

 6 out port  φ30mm

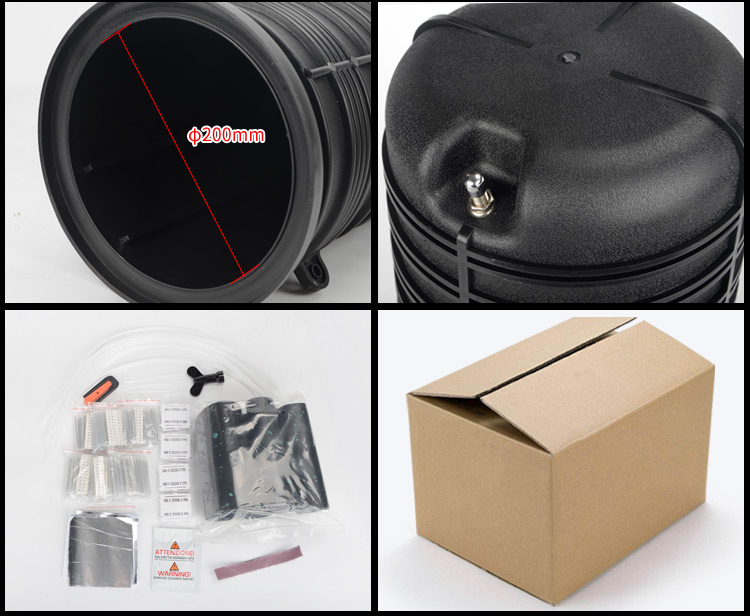

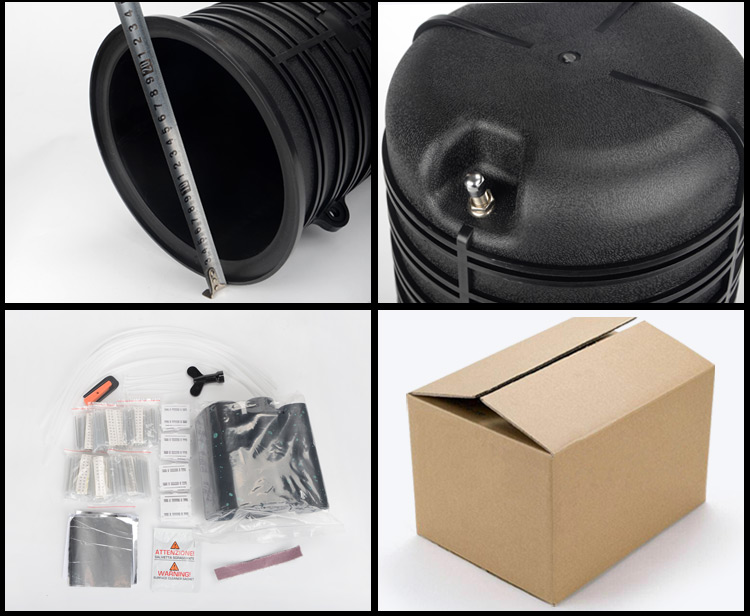

Packing Quantity

1 pcs / carton

31* 32*55cm 5kg

Max Core

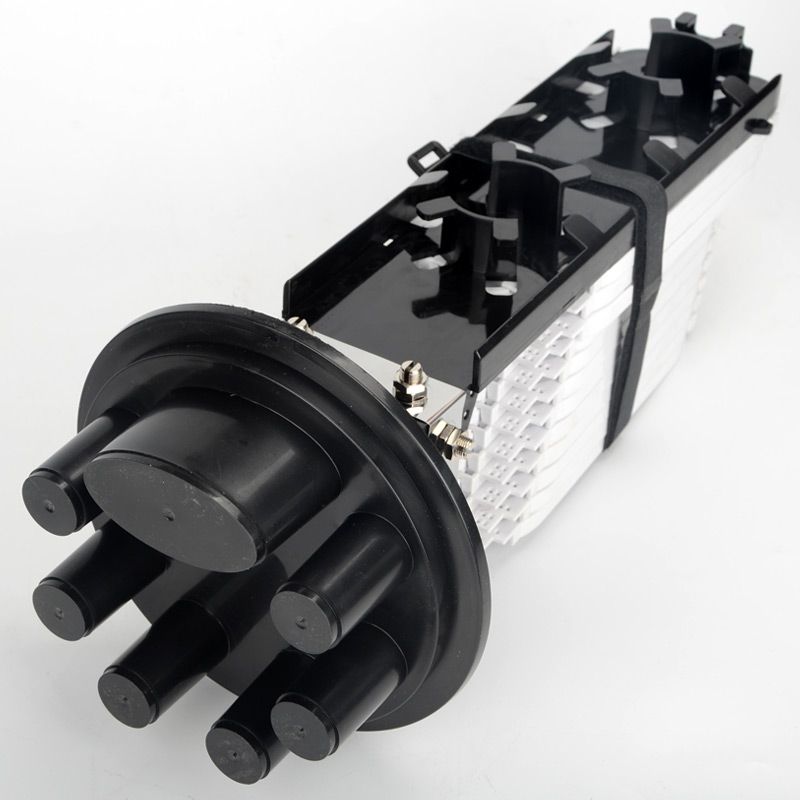

24F/tray, max capacity 288F(12 trays)

MaterialPolymer Plastic+Fiber
Installation TypeVerticalN. weight5.0kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.

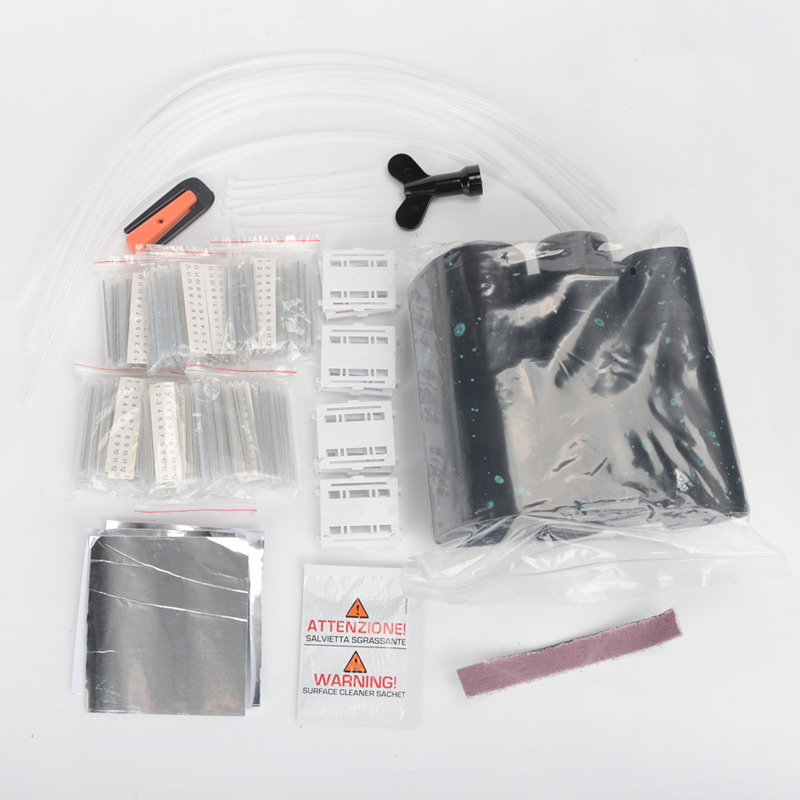

2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.

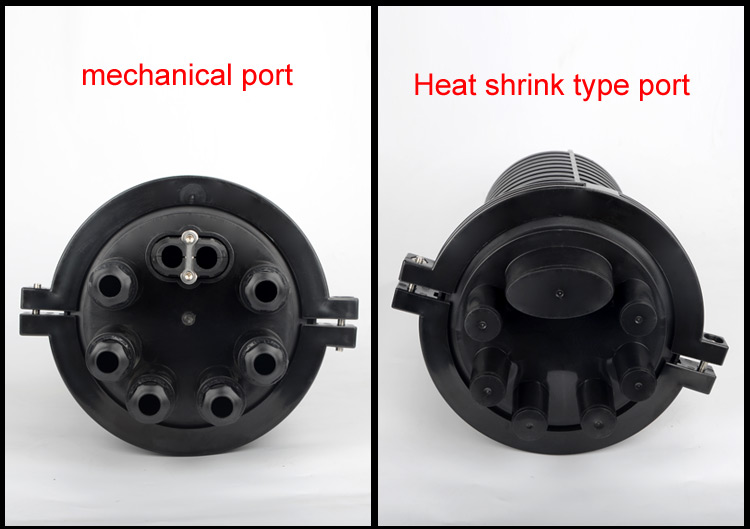

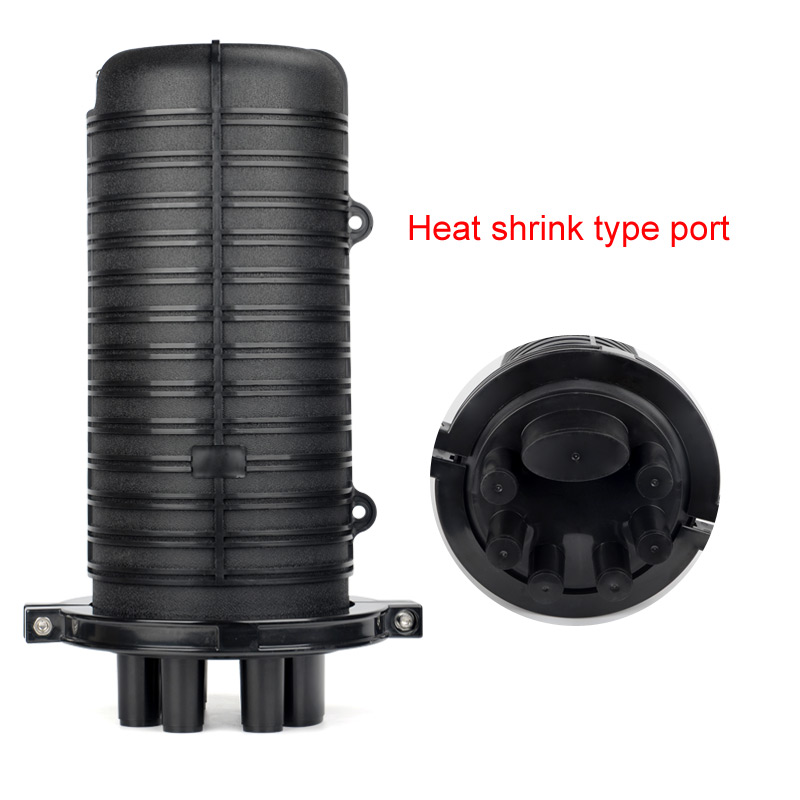

8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
