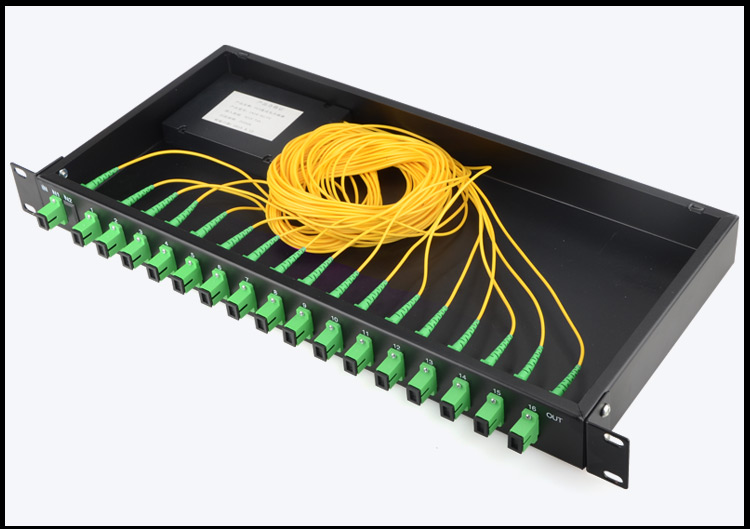

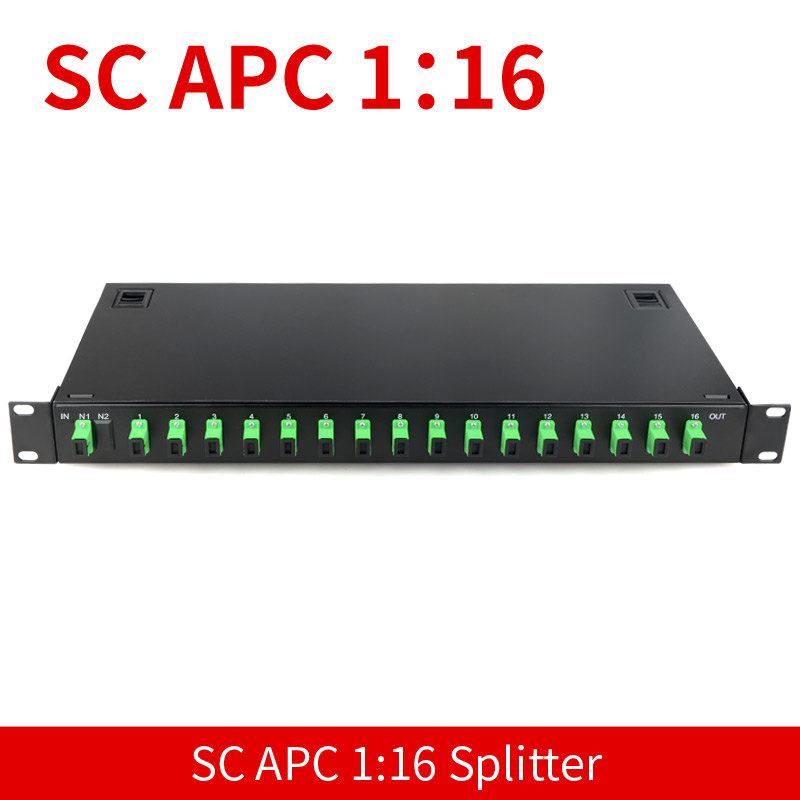

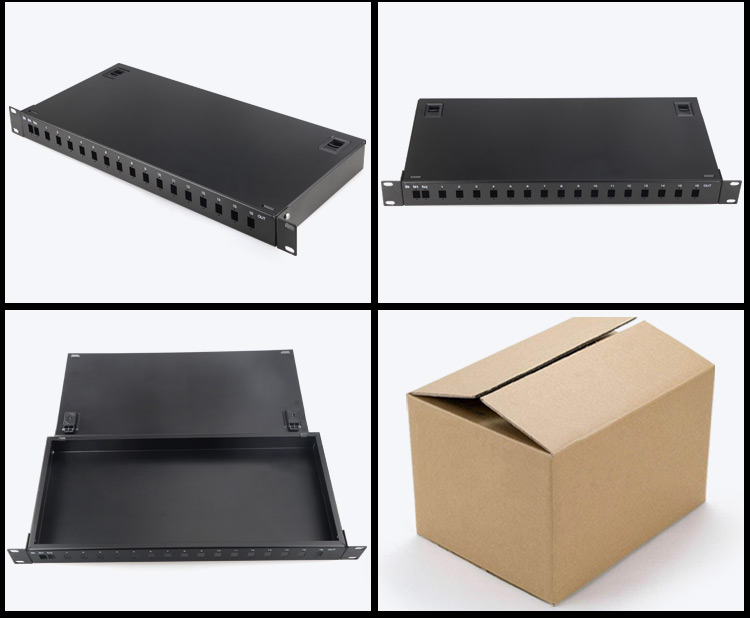

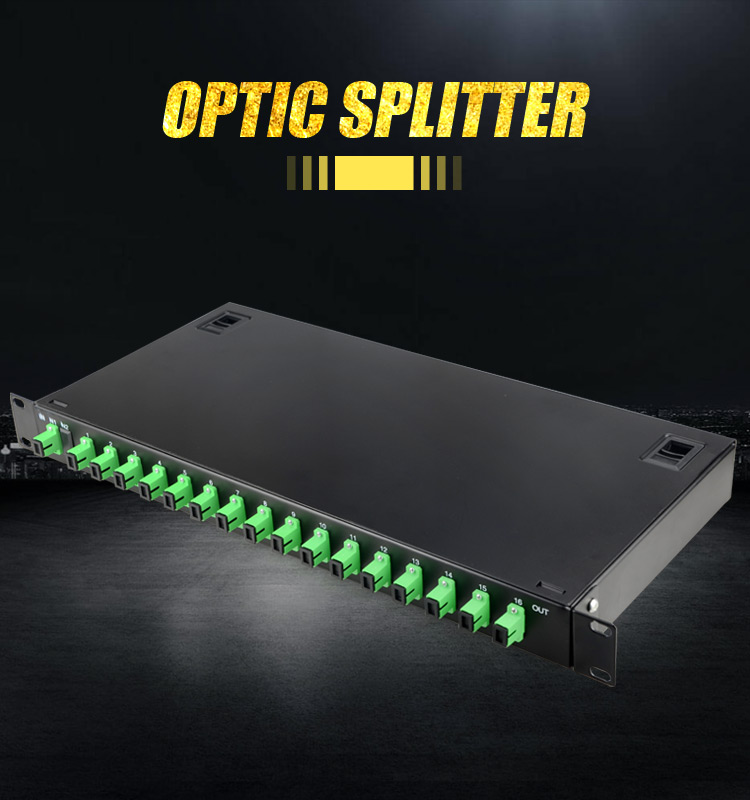

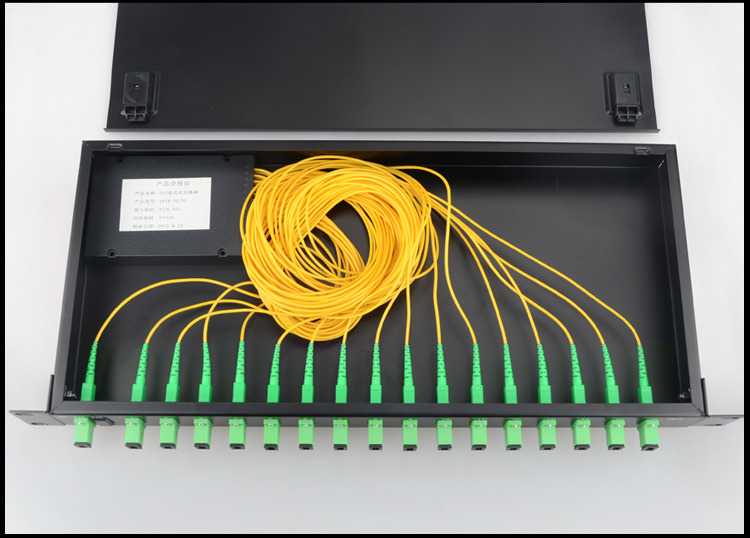

RACK PLC Splitter Box SC/APC 1:16

Product namePLC Optic SplitterProduct TypeRACK type
Product ModelPLC SC/APC 1:16Optical ConnectorSC/FC/LC/ST
1 × N PLC Optic Splitter Specification
OperatingWavelength(μm)1260~1650
Port Configuration1×21×41×81×161×32
Insertion Loss (dB)3.67.510.213.516.9
Loss Uniformity (dB)0.40.60.81.21.5
Polarization Dependent Loss (dB)0.2

0.2

0.20.250.3
Wavelength Dependent Loss (dB)0.30.30.30.50.5
Temperature Dependent Loss(-40~85) (dB)0.40.40.40.50.5
Returm Loss (dB)55/50
Operating Temperature (℃)-40~+85
Directivity (dB)≥55
Storage Temperature (℃)-40~+85
