Packing Size

Inner Box Size

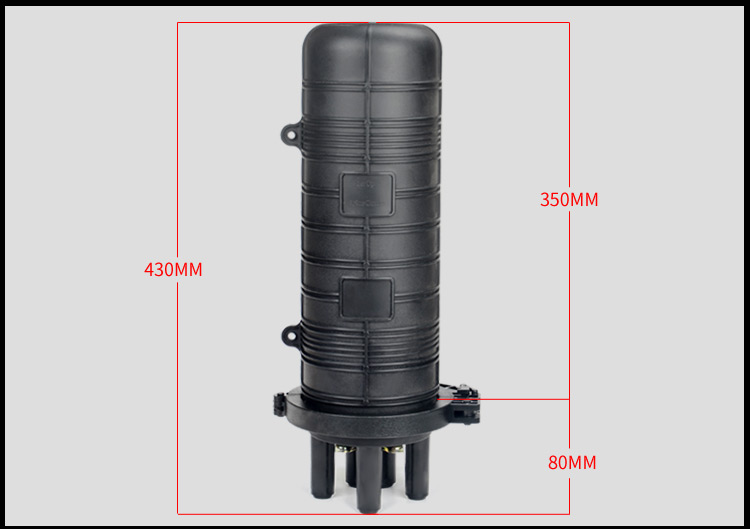

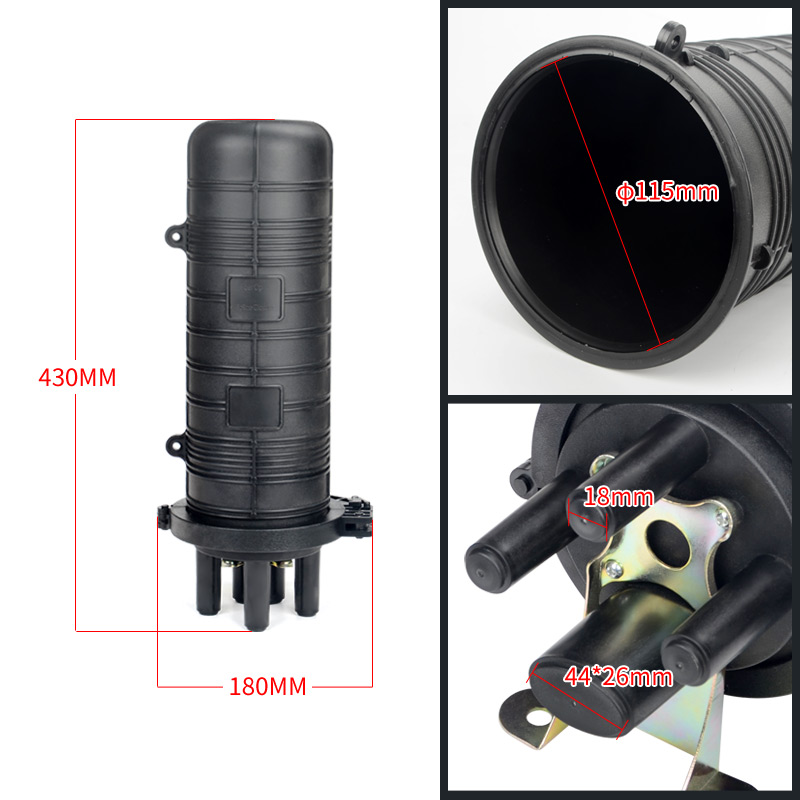

430*180*180mm

 φ115mm

450*240*180 mm

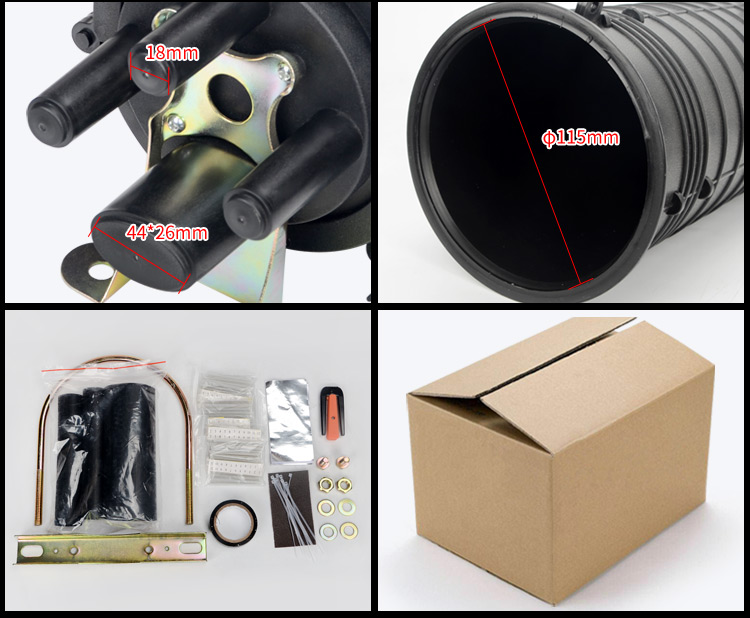

1 inlet port 44*26mm

 3 out port φ18mm

8 pcs / carton

72*42*48cm 18.7kg

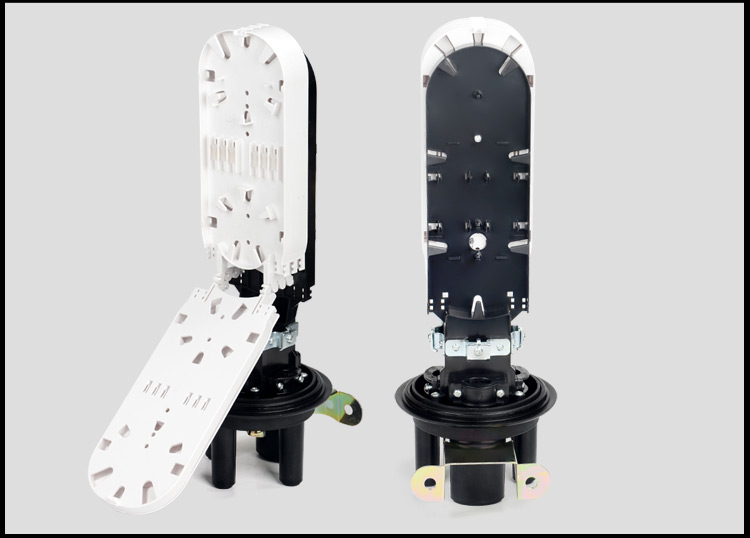

24F/tray, max capacity 96F(4 trays)

1.Suitable for ordinary fiber and ribbon fiber.

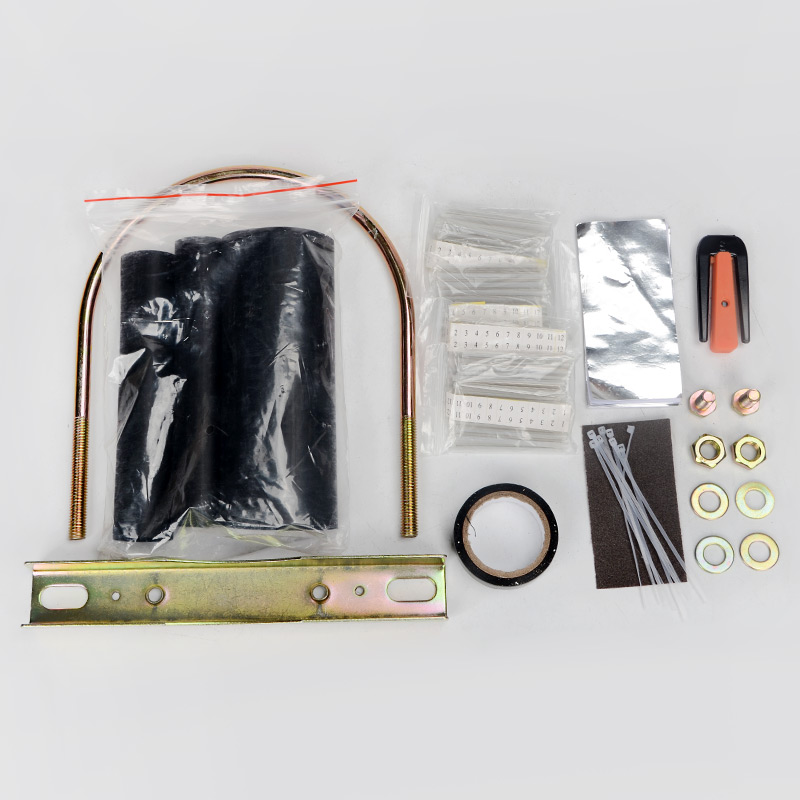

2.Fully kitted with all parts for convenient operation.

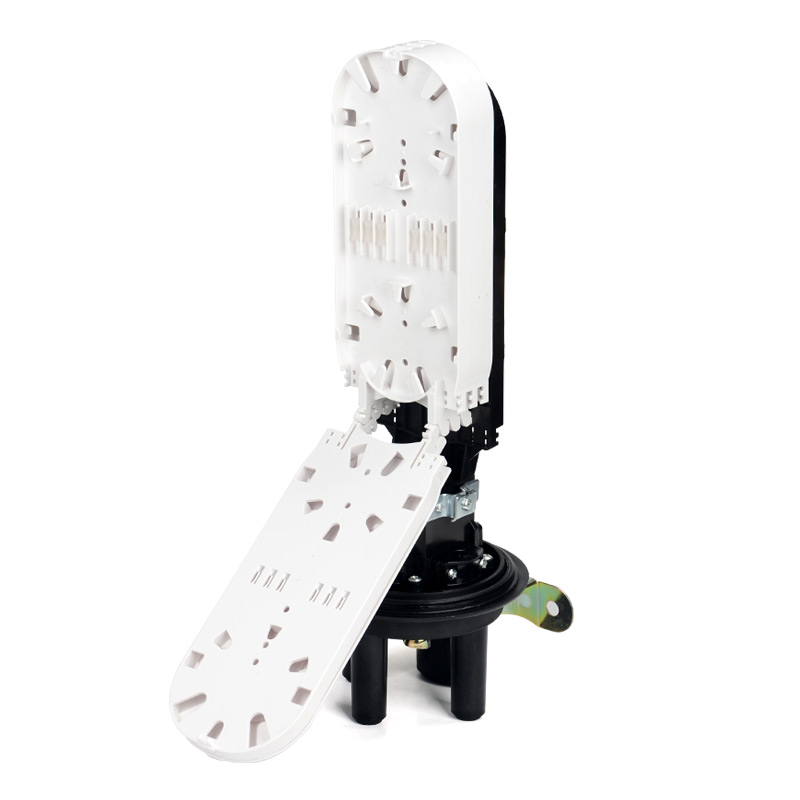

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
