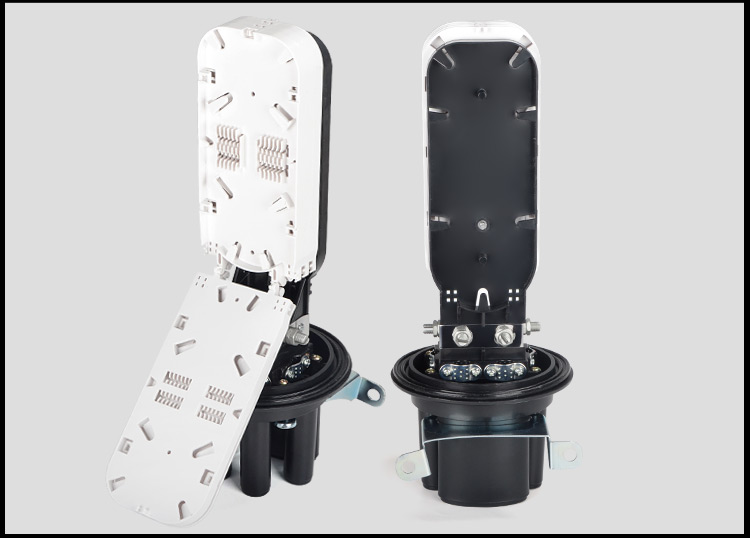

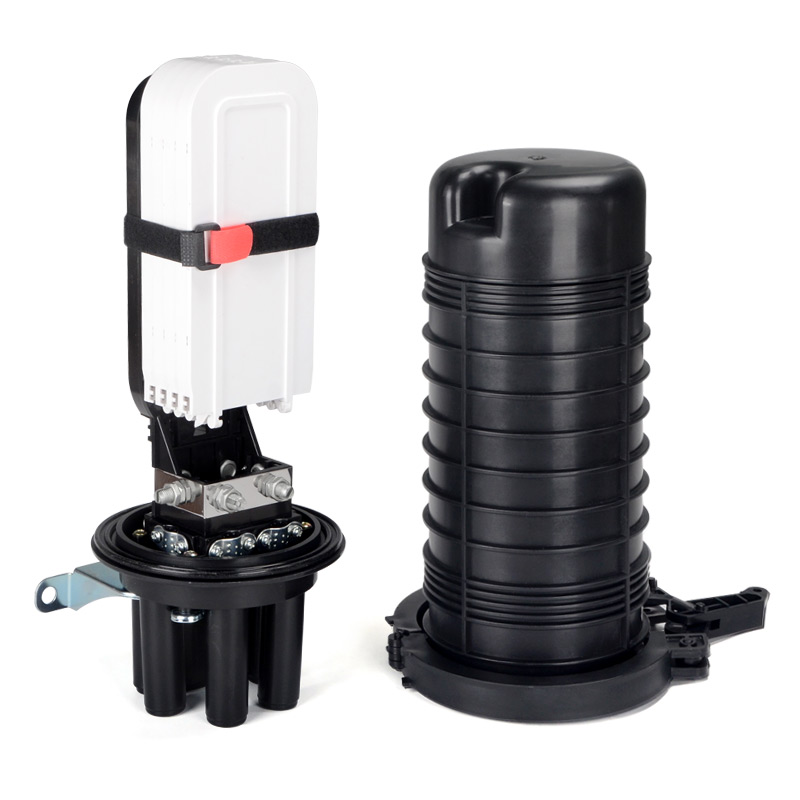

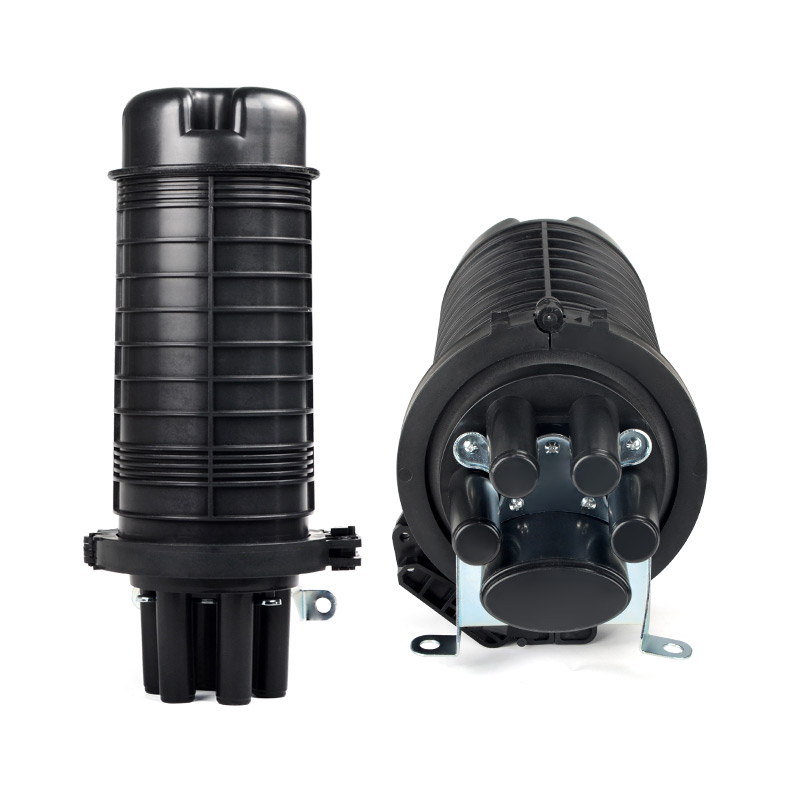

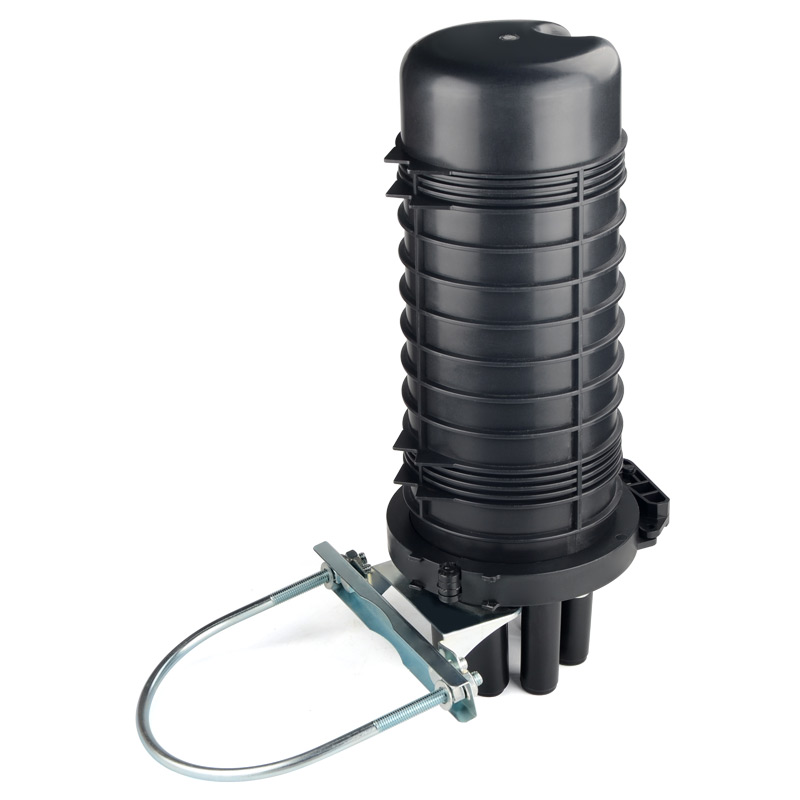

FCBF-96A Fiber Optic Joint Closure

Product nameFiber Optic Joint ClosureIP RateIP68
Product ModelFCBF-96A

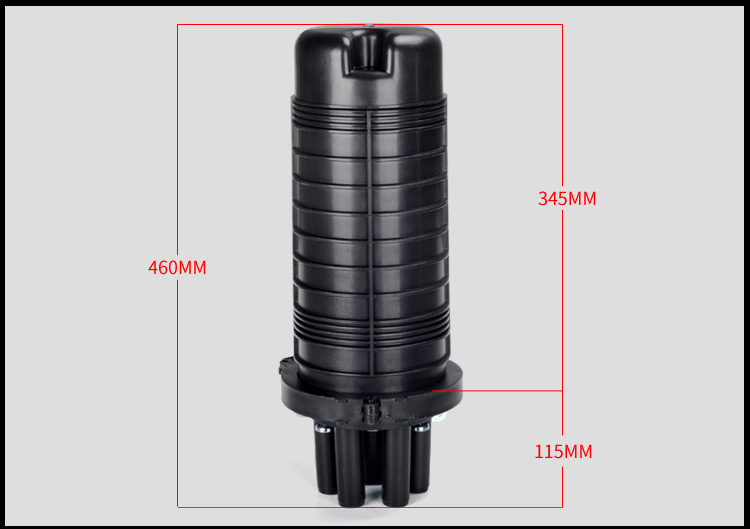

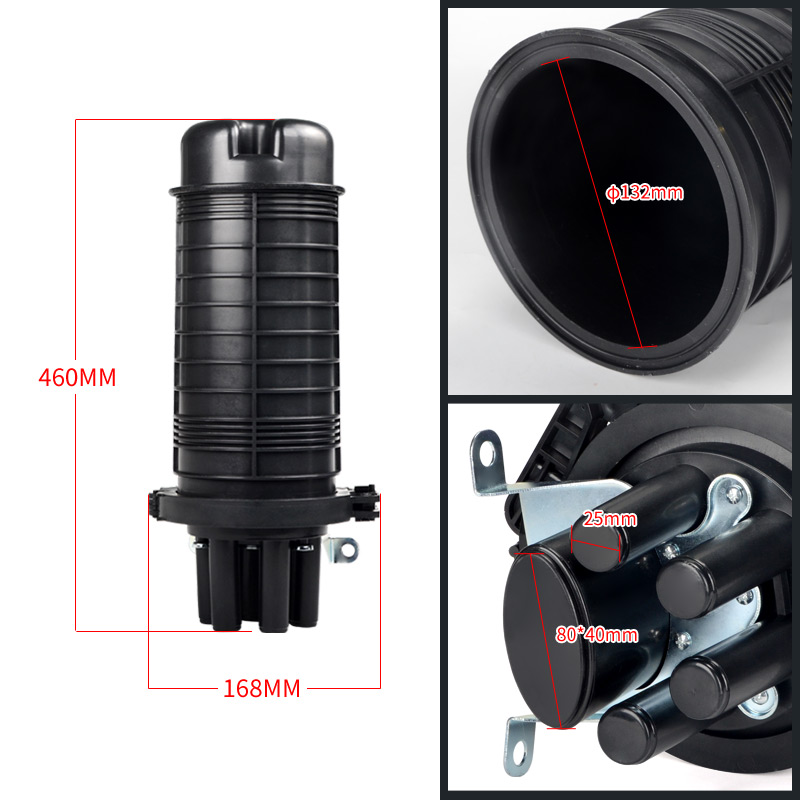

Product Size

Inner Box Size

460*168*200mm

φ132 mm

465*170*210 mm

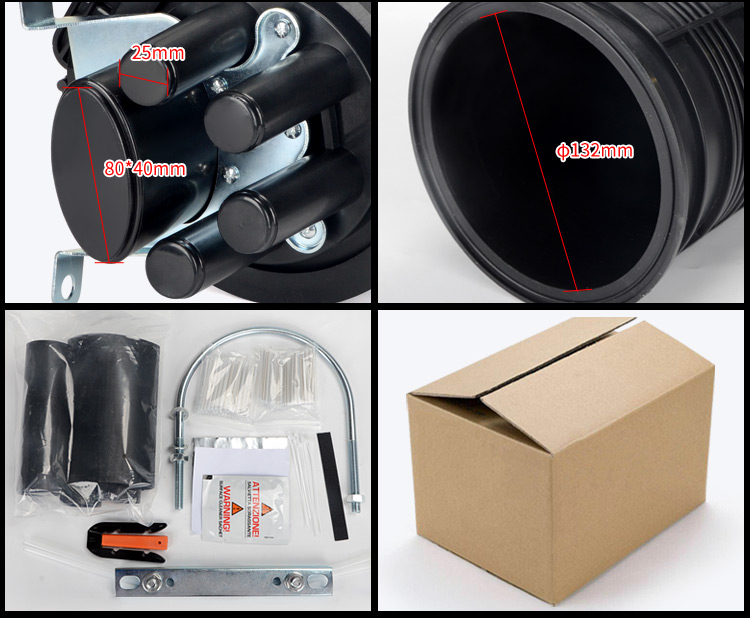

Ports

1 inlet port 80*40mm

 4 out port φ25mm

Packing Quantity

8 pcs / carton

73*43*47.2cm 19.9kg

73*44*49cm 20.5kg

Max Core

24F/tray, max capacity 96F(4 trays)

MaterialPolymer Plastic+Fiber
Installation TypeVerticalG. weight2.4kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.

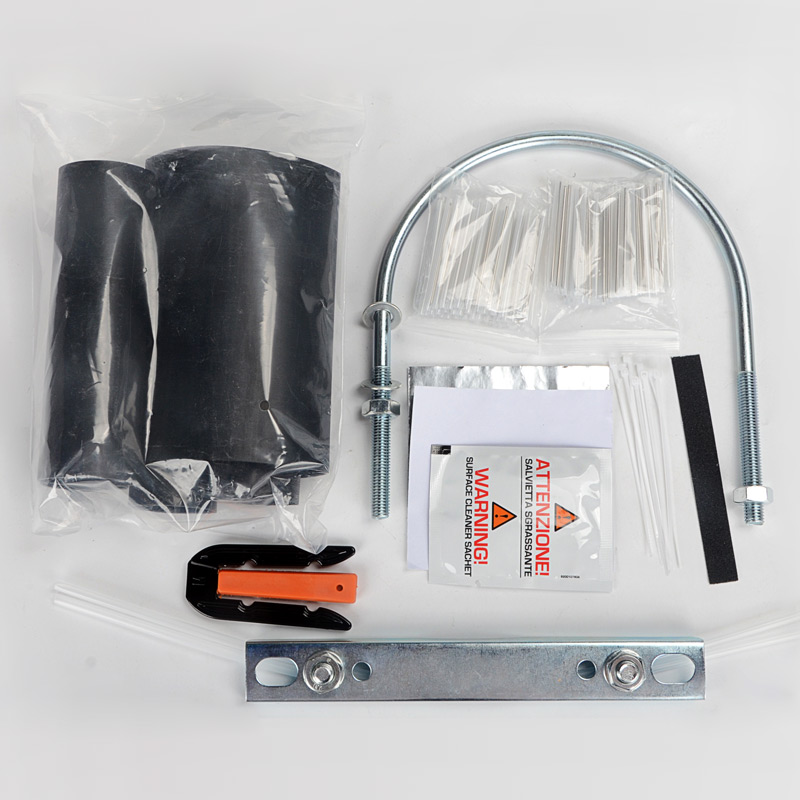

2.Fully kitted with all parts for convenient operation.

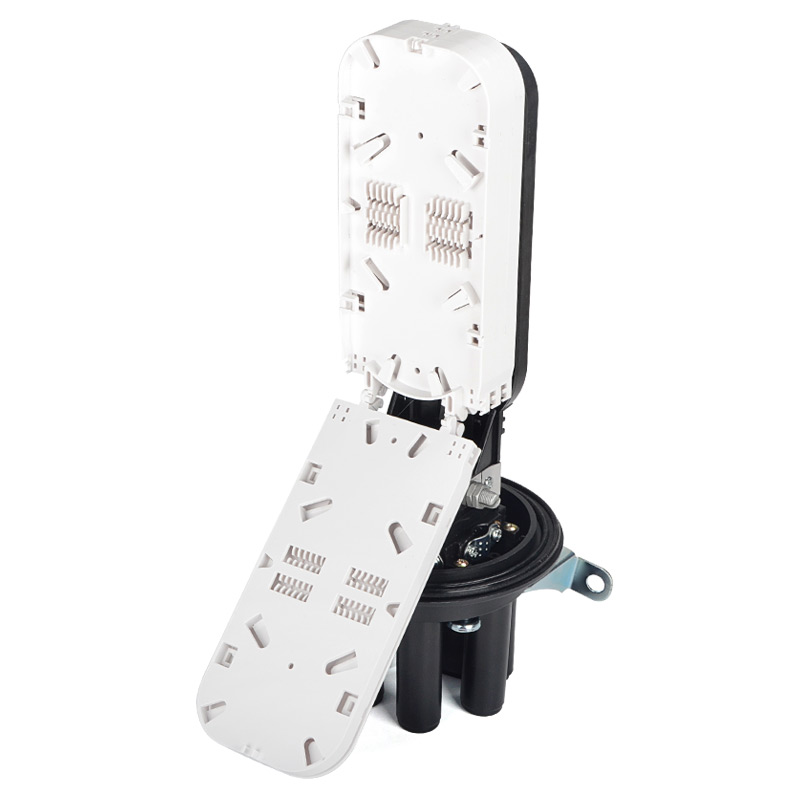

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
