Product Size

Inner Box Size

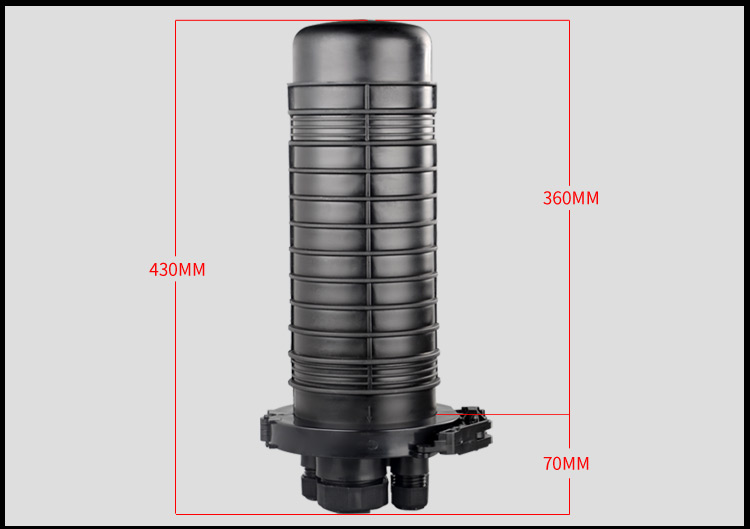

430*205*175mm

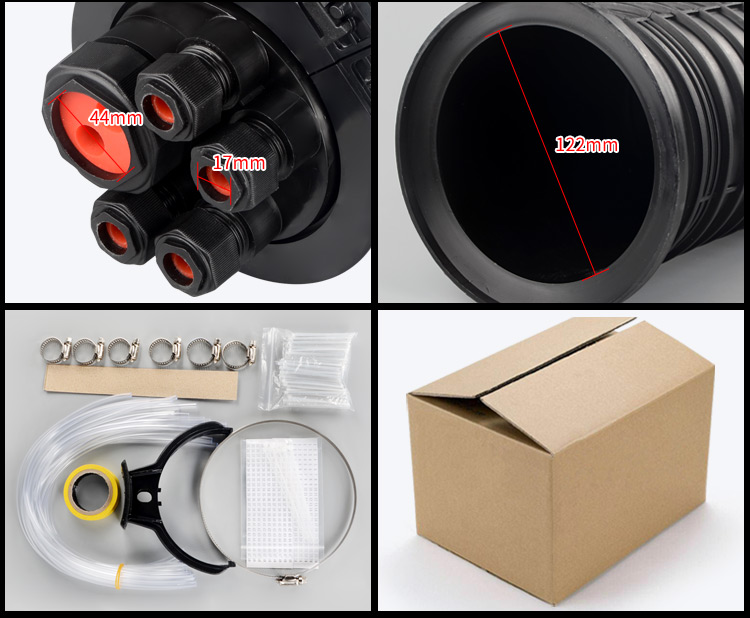

φ122 mm

455*220*195 mm

2 inlet port φ17mm

 4 out port φ11mm

6 pcs / carton

47*47*62cm 16kg

24F/tray, max capacity 96F(4 trays)

1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.

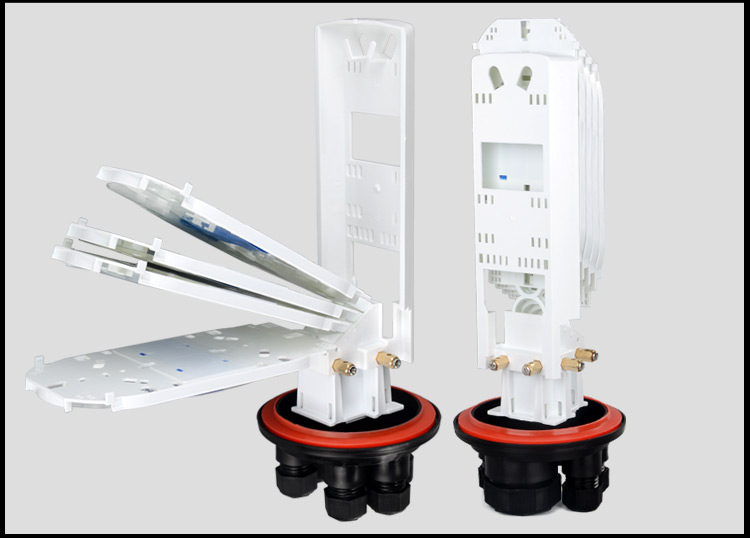

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
