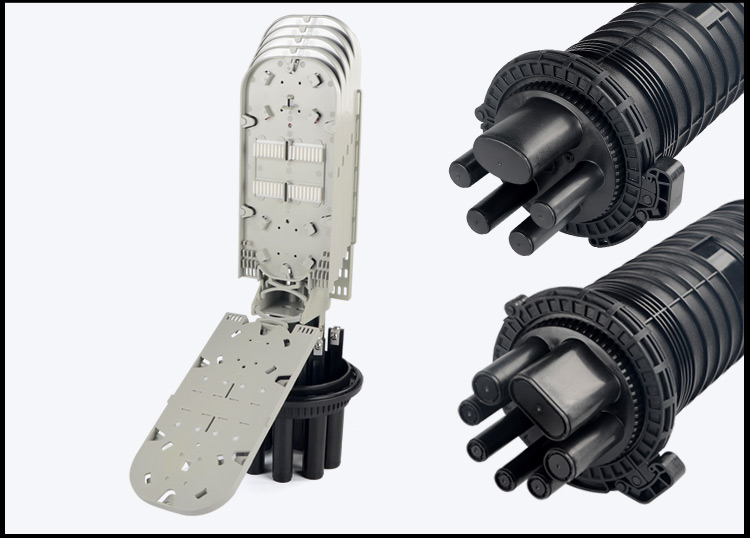

FCBF-M144 1-6 Fiber Optical Joint Closure

Product nameFiber Splice BoxIP RateIP68
Product ModelFCBF-M

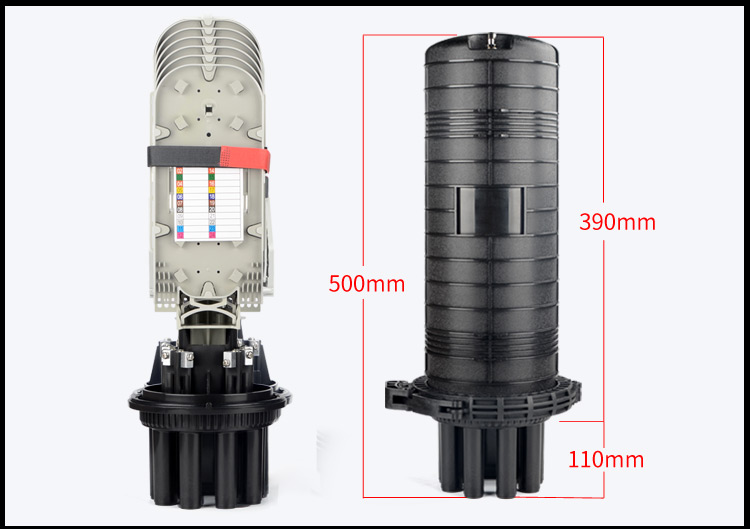

Product Size

Packing Size

500*218*188mm

φ135 mm

510*230*215 mm

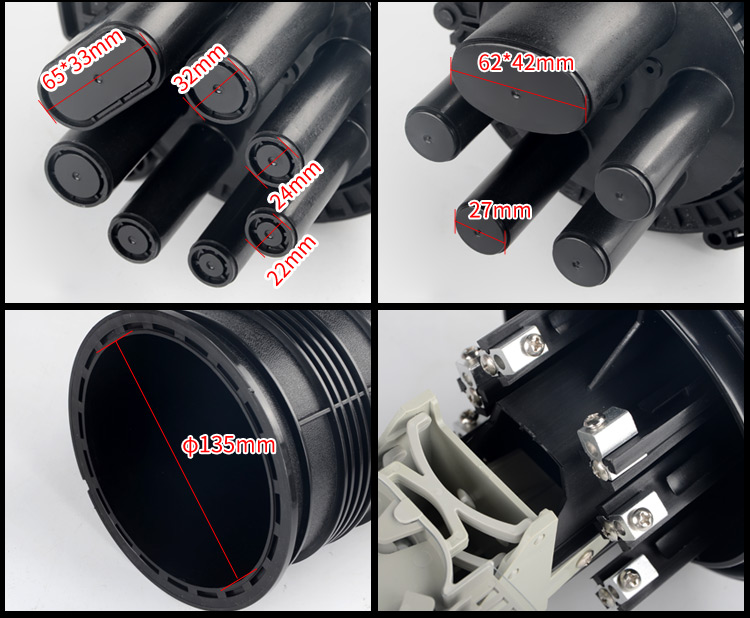

Ports

1 inlet port 62*42mm

 2 out port φ32mm

 2 out port φ24mm

 2 out port φ22mm

Packing Quantity

6 pcs / carton

52*47*66cm 19kg

Max Core

24F/tray, max  144F(6 trays)

MaterialPolymer Plastic+Fiber
Installation TypeVerticalG. weight3.0kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.

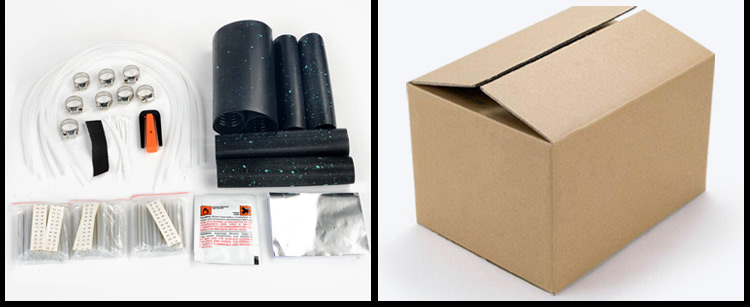

2.Fully kitted with all parts for convenient operation.
3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
