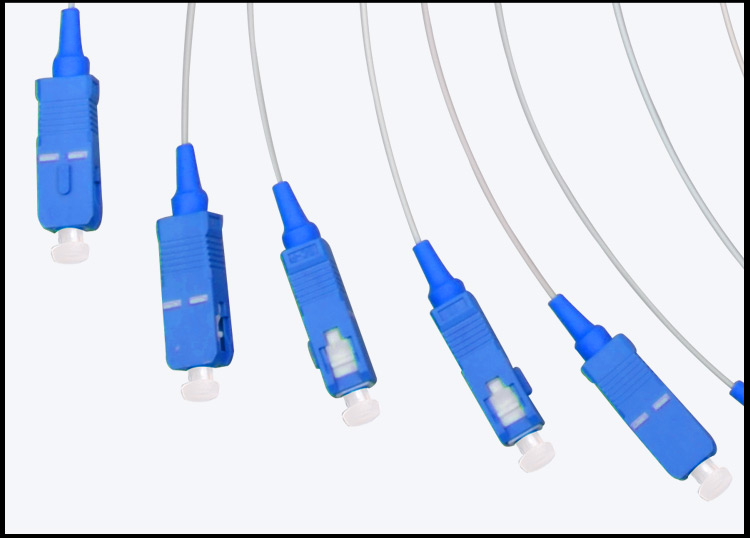

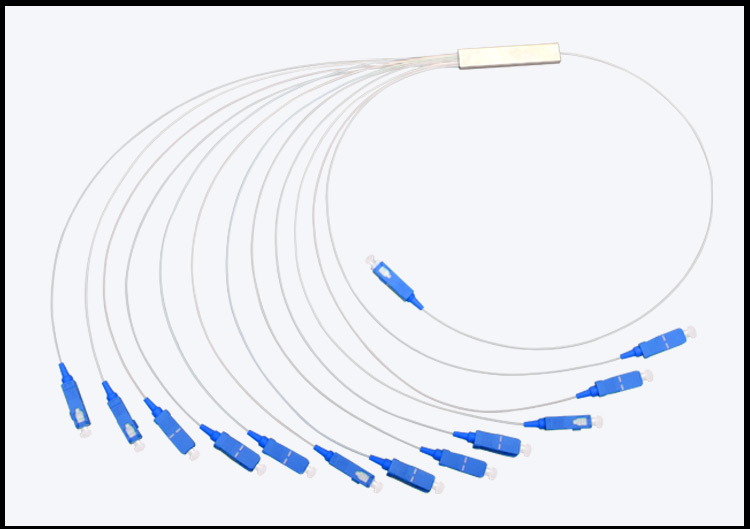

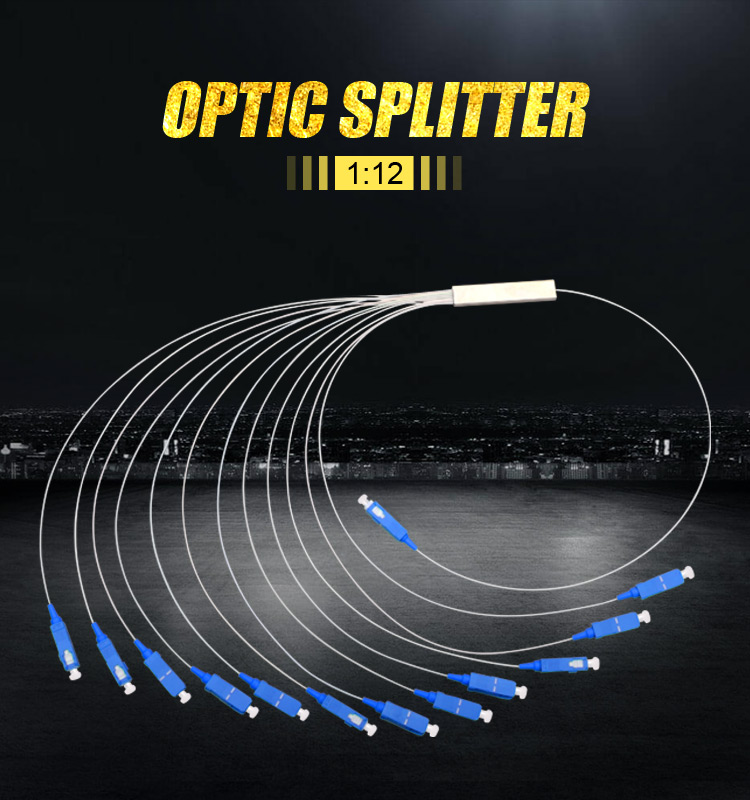

PLC SC/UPC 1:12 Mini steel tube type Splitter
| Product name | PLC Optic Splitter | Product Type | Mini steel tube type |
| Product Model | PLC SC/UPC 1:12 | Packing Quantity | 100 pcs / carton 38*35*50cm 9.5kg |
| 1 × N PLC Optic Splitter Specification | |||||
| OperatingWavelength（μm） | 1260~1650 | ||||
| Port Configuration | 1×2 | 1×4 | 1×8 | 1×16 | 1×12 |
| Insertion Loss (dB) | 3.6 | 7.5 | 10.2 | 13.5 | 12.5 |
| Loss Uniformity (dB) | 0.4 | 0.6 | 0.8 | 1.2 | 1.2 |
| Polarization Dependent Loss (dB) | 0.2 | 0.2 | 0.2 | 0.25 | 0.3 |
| Wavelength Dependent Loss (dB) | 0.3 | 0.3 | 0.3 | 0.5 | 0.3 |
| Temperature Dependent Loss(-40~85) (dB) | 0.4 | 0.4 | 0.4 | 0.5 | 0.4 |
| Returm Loss (dB) | 55/50 | ||||
| Operating Temperature （℃） | -40~+85 | ||||
| Directivity (dB) | ≥55 | ||||
| Storage Temperature （℃） | -40~+85 | ||||
