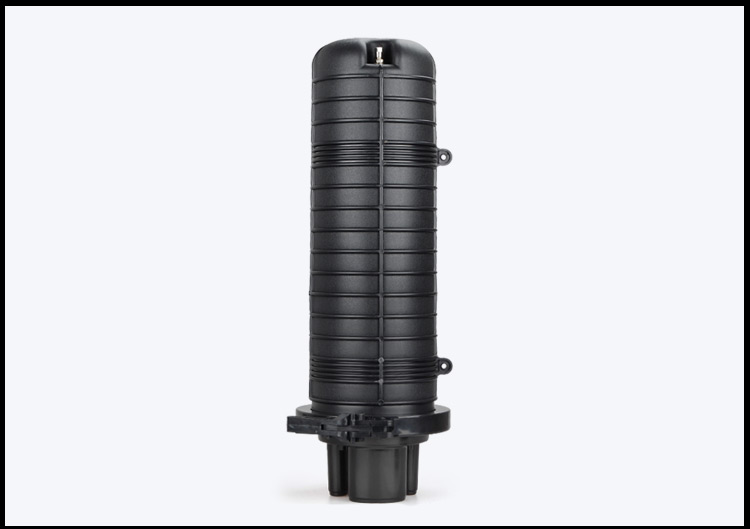

FCBF-96B

Product nameFiber Splice BoxIP RateIP68
Product ModelFCBF-96BPacking Size

540*φ215mm

560*230*210 mm

Ports

1 inlet port 57*45mm

4 out port φ21mm

Packing Quantity

6 pcs / carton

68*49*58cm 24kg

Max Core

24F/tray, max capacity 96F(4 trays)

MaterialPolymer Plastic+Fiber
Installation TypeVerticalG. weight3.2kg
Key Features:

1.Suitable for ordinary fiber and ribbon fiber.
2.Fully kitted with all parts for convenient operation.

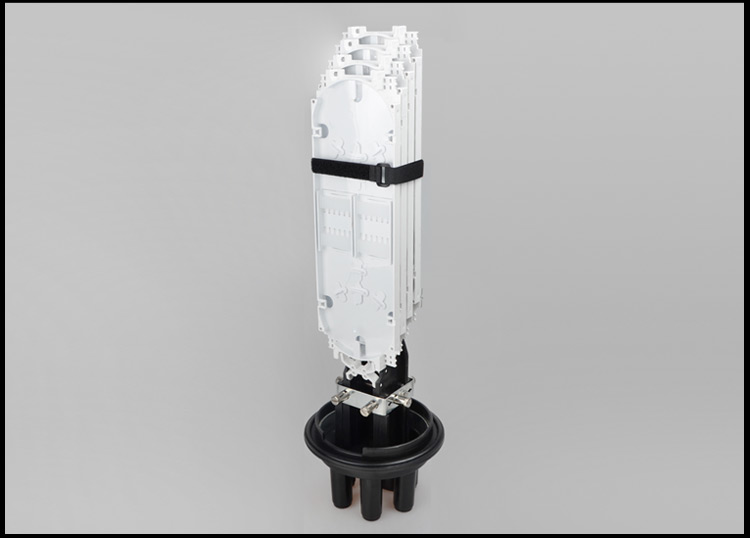

3.Overlap structure in splicing tray for easy installation.
4.Fiber-bending radium guaranteed more than 40mm.
5.Easy to install and re-entry with a common can wrench.
6.Excellent Anti-removable Screw Opening Type to protect fiber and splice ensuring durability.
7.Stand up to severe condition of moisture,vibration and extreme temperatures.
8.Mechanical sleeve or heat shrinkable fixing sleeve for optional.
